Gene Amplification Mobile PCR Lab ISO90001 ISO13485 Certification

Gene Amplification Mobile PCR Lab ISO90001 ISO13485 Certification
Gene Amplification Mobile PCR Lab ISO90001 ISO13485 Certification

Large Image :  Gene Amplification Mobile PCR Lab ISO90001 ISO13485 Certification

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO,CE
Model Number: YFS-14
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD65,000-USD120,000
Packaging Details: 40 foot container
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C,Credit Card, Alibaba Trade
Supply Ability: 50units per month

Gene Amplification Mobile PCR Lab ISO90001 ISO13485 Certification

Description
Product Name: Manufacturer Mobile PCR Container Laboratory With ISO90001 ISO13485 Certification Model Number: YFS-14
Dimension: (L )13.5m X (W)2.98m X (H)2.98m Warranty: Lifetime
Highlight:

gene amplification Mobile PCR Lab

,

ISO90001 Mobile PCR Lab

,

ISO13485 mobile lab pcr

Manufacturer Mobile PCR Container Laboratory With ISO90001 ISO13485 Certification



Product Introduction

PCR laboratory is also called gene amplification laboratory. PCR is the Polymerase Chain Reaction (Polymerase Chain Reaction). It can be composed following different structure; different medical units can be linked in any possible configuration, depending on customer needs. It doesn’t depend on general electricity grids and has its own water purification system. This makes the hospital extremely suitable for areas where essential infrastructure is destroyed and places where medical facilities are lacking. It can be re-located or used on a permanent basis due to low cost components.



Product Structure



Areas Main Functions Main equipment configuration (for reference only)
Reagent Preparation Area The preparation and storage of reagents, the preparation of the main reaction mixture for the dispensing of reagents Ultra-clean workbench, refrigerators, mixer, pipette, UV lamp
Sample Preparation Area Nucleic acid (RNA, DNA) extraction, storage and production of amplification reaction tubes Biological safety cabinet, refrigerators, high-speed desktop refrigerated centrifuge, mixer, water bath or heating module, nucleic acid extractor, micro sampler (covering 0.2-1000ul), UV lamp
Amplification Analysis Area Nucleic acid amplification Real-time fluorescent PCR quantitative instrument, centrifuge, pipette, UV lamp





Product Parameters



Model Dimension(L x W x H) COVID-19 Detection Efficiency
YFS-14 13.5m x 2.98m x 2.98m
  1. Place a double safety cabinet in the sample preparation room, and be equipped with two 96-holes automatic nucleic acid extractors to extract and purify DNA/RNA from 96 samples at the same time. Amplification analysis room can be placed 4 sets of 96-holes reaction plate real-time fluorescent quantitative PCR instrument to achieve simultaneous analysis of 384 nucleic acid samples.
  2. The experimental efficiency is 96 * 4 detection volume every 2.5-3 hours, and the maximum turnover of 24 hours detection is 8-9 times, that is, the maximum detection volume in 24 hours is 96 * 4 * 9 = 3456 samples. If the 1:10 mixed inspection method is adopted, the maximum inspection volume in 24 hours can reach 34,560 person-times.



Product Display

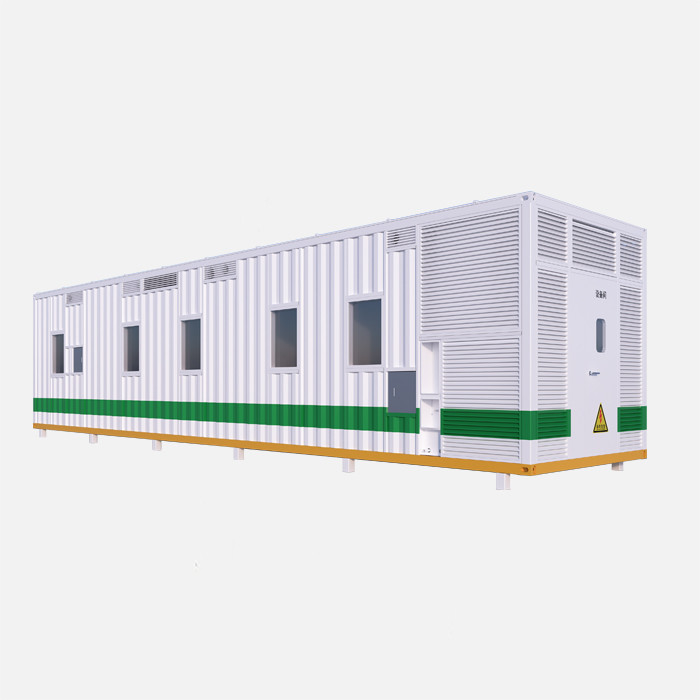

Gene Amplification Mobile PCR Lab ISO90001 ISO13485 Certification 0



Product Features

  1. Small cover area: It is a standard container.  The storage area is about 52.5 square meters. There will be suitable space in the hospital or the place where the epidemic occurs.
  2. High independence: The container has completed all the installations before leaving the factory. In extreme conditions, it can even operate independently without external power supply and water supply.
  3. Manage easily: The recommended location for the container is generally in a remote place outdoors, which is beneficial to the isolation of patients or the control of the spread of the virus. Container PCR laboratory effectively avoids aggregation and infectivity.
  4. Re-used available: The mobile PCR laboratory can be reused. After the epidemic is over, it can be transported to the CDC, hospital, port or third-party testing unit for reuse after being disinfected by professionals.
  5. Higher security: The mobile PCR laboratory must consider factors such as long-distance transportation and outdoor storage conditions. The test bench and equipment in the box have higher requirements for shock resistance, corrosion resistance, cold and heat resistance.
