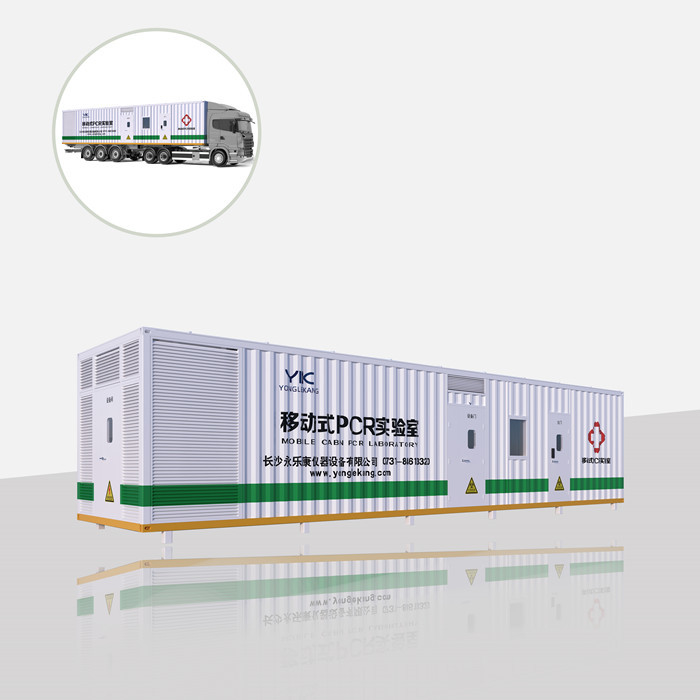

13.5m Pcr Mobile Laboratories , Nuclein Acid Rt Pcr Test Lab

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

13.5m Pcr Mobile Laboratories , Nuclein Acid Rt Pcr Test Lab

13.5m Pcr Mobile Laboratories , Nuclein Acid Rt Pcr Test Lab
13.5m Pcr Mobile Laboratories , Nuclein Acid Rt Pcr Test Lab

Large Image :  13.5m Pcr Mobile Laboratories , Nuclein Acid Rt Pcr Test Lab

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD65,000-USD120,000
Packaging Details: 40 foot container
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C,Credit Card, Alibaba Trade
Supply Ability: 50units per month

13.5m Pcr Mobile Laboratories , Nuclein Acid Rt Pcr Test Lab

Description
Model Number: YFS-14 Product Name: PCR Lab Mobile Container PCR Laboratory For Nuclein Acid Testing
Dimension: (L )13.5m X (W)2.98m X (H)2.98m Warranty: Lifetime
High Light:

13.5m pcr mobile laboratories

,

rt pcr mobile laboratories

,

Nuclein Acid rt pcr test lab

PCR Lab Mobile Container PCR Laboratory for Nuclein Acid Testing



Product Introduction

The mobile PCR chamber laboratory meets the requirements of the enhanced medical BSL-2 laboratory, highly integrated with water, electricity, HVAC and other equipment , and equipped with the necessary instruments for the experiment.It adopts factory modular form a complete set.



Product Structure



Areas Main Functions Main equipment configuration (for reference only)
Reagent Preparation Area The preparation and storage of reagents, the preparation of the main reaction mixture for the dispensing of reagents Ultra-clean workbench, refrigerators, mixer, pipette, UV lamp
Sample Preparation Area Nucleic acid (RNA, DNA) extraction, storage and production of amplification reaction tubes Biological safety cabinet, refrigerators, high-speed desktop refrigerated centrifuge, mixer, water bath or heating module, nucleic acid extractor, micro sampler (covering 0.2-1000ul), UV lamp
Amplification Analysis Area Nucleic acid amplification Real-time fluorescent PCR quantitative instrument, centrifuge, pipette, UV lamp





Product Parameters



Model Dimension(L x W x H) COVID-19 Detection Efficiency
YFS-14 13.5m x 2.98m x 2.98m
  1. Place a double safety cabinet in the sample preparation room, and be equipped with two 96-holes automatic nucleic acid extractors to extract and purify DNA/RNA from 96 samples at the same time. Amplification analysis room can be placed 4 sets of 96-holes reaction plate real-time fluorescent quantitative PCR instrument to achieve simultaneous analysis of 384 nucleic acid samples.
  2. The experimental efficiency is 96 * 4 detection volume every 2.5-3 hours, and the maximum turnover of 24 hours detection is 8-9 times, that is, the maximum detection volume in 24 hours is 96 * 4 * 9 = 3456 samples. If the 1:10 mixed inspection method is adopted, the maximum inspection volume in 24 hours can reach 34,560 person-times.



Product Display

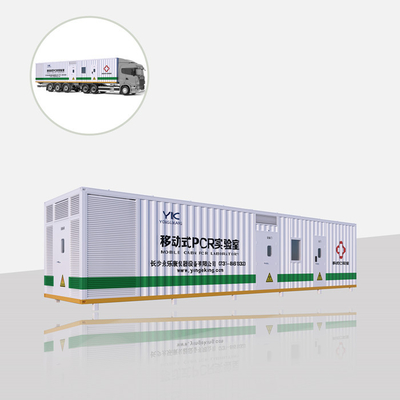

13.5m Pcr Mobile Laboratories , Nuclein Acid Rt Pcr Test Lab 0



Product Features

  1. Small cover area: It is a standard container. The experimental process including the equipments inside are built in accordance with the standard PCR laboratory. The storage area is about 52.5 square meters. There will be suitable space in the hospital or the place where the epidemic occurs.
  2. High independence: The container has completed all the installations before leaving the factory. In extreme conditions, it can even operate independently without external power supply and water supply. It can be used as a vehicle-mounted laboratory in an emergency, and it is not required when transported to the place where the epidemic occurs. Any installation can be used.
  3. Manage easily: The recommended location for the container is generally in a remote place outdoors, which is beneficial to the isolation of patients or the control of the spread of the virus. Container PCR laboratory effectively avoids aggregation and infectivity.
  4. Re-used available: The mobile PCR laboratory can be reused. After the epidemic is over, it can be transported to the CDC, hospital, port or third-party testing unit for reuse after being disinfected by professionals.
  5. Higher security: The mobile PCR laboratory must consider factors such as long-distance transportation and outdoor storage conditions. The test bench and equipment in the box have higher requirements for shock resistance, corrosion resistance, cold and heat resistance.
