13.5m Hospital Mobile PCR Lab Machine Biological Safety Cabinet

13.5m Hospital Mobile PCR Lab Machine Biological Safety Cabinet
13.5m Hospital Mobile PCR Lab Machine Biological Safety Cabinet

Large Image :  13.5m Hospital Mobile PCR Lab Machine Biological Safety Cabinet

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO,CE
Model Number: YFS-14
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD65,000-USD120,000
Packaging Details: 40 foot container
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C,Credit Card, Alibaba Trade
Supply Ability: 50units per month

13.5m Hospital Mobile PCR Lab Machine Biological Safety Cabinet

Description
Product Name: Factory Customized Containerized Smart Mobile Hospital Cabin PCR Testing Laboratory Model Number: YFS-14
Dimension: (L )13.5m X (W)2.98m X (H)2.98m Warranty: Lifetime
Highlight:

13.5m Mobile PCR Lab machine

,

Hospital Mobile PCR Lab machine

,

Biological mobile lab pcr

Factory Customized Containerized Smart Mobile Hospital Cabin PCR Testing Laboratory



Product Introduction

1. Suitable for mobile to stationary purposes
2. the laboratory comes to the customer
3. Stationary mounted to vehicle or trailer/van body
4. Street bound or cross-country
5. Cleanroom, protection levels and security levels are possible
6. Aeration respectively air conditioning according to requirements
7. If necessary completely self-sufficient with power and water supply
8. Especially suitable for very frequent relocation



Product Structure



Areas Main Functions Main equipment configuration (for reference only)
Reagent Preparation Area The preparation and storage of reagents, the preparation of the main reaction mixture for the dispensing of reagents Ultra-clean workbench, refrigerators, mixer, pipette, UV lamp
Sample Preparation Area Nucleic acid (RNA, DNA) extraction, storage and production of amplification reaction tubes Biological safety cabinet, refrigerators, high-speed desktop refrigerated centrifuge, mixer, water bath or heating module, nucleic acid extractor, micro sampler (covering 0.2-1000ul), UV lamp
Amplification Analysis Area Nucleic acid amplification Real-time fluorescent PCR quantitative instrument, centrifuge, pipette, UV lamp





Product Parameters



Model Dimension(L x W x H) COVID-19 Detection Efficiency
YFS-14 13.5m x 2.98m x 2.98m
  1. Place a double safety cabinet in the sample preparation room, and be equipped with two 96-holes automatic nucleic acid extractors to extract and purify DNA/RNA from 96 samples at the same time. Amplification analysis room can be placed 4 sets of 96-holes reaction plate real-time fluorescent quantitative PCR instrument to achieve simultaneous analysis of 384 nucleic acid samples.
  2. The experimental efficiency is 96 * 4 detection volume every 2.5-3 hours, and the maximum turnover of 24 hours detection is 8-9 times, that is, the maximum detection volume in 24 hours is 96 * 4 * 9 = 3456 samples. If the 1:10 mixed inspection method is adopted, the maximum inspection volume in 24 hours can reach 34,560 person-times.



Product Display

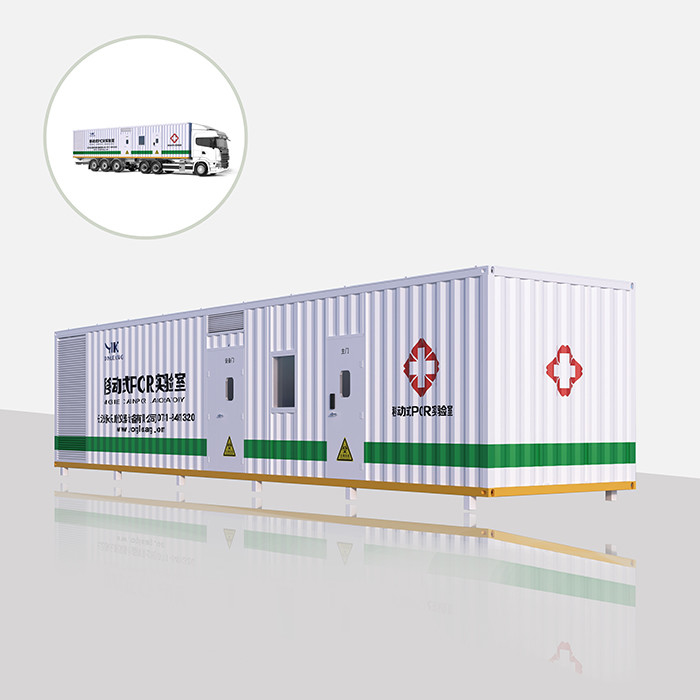

13.5m Hospital Mobile PCR Lab Machine Biological Safety Cabinet 0



Product Features

  1. Small cover area: It is a standard container. The experimental process including the equipments inside are built in accordance with the standard PCR laboratory. There will be suitable space in the hospital or the place where the epidemic occurs.
  2. High independence: In extreme conditions, it can even operate independently without external power supply and water supply. It can be used as a vehicle-mounted laboratory in an emergency, and it is not required when transported to the place where the epidemic occurs. Any installation can be used.
  3. Manage easily: The recommended location for the container is generally in a remote place outdoors, which is beneficial to the isolation of patients or the control of the spread of the virus. Container PCR laboratory effectively avoids aggregation and infectivity.
  4. Re-used available: After the epidemic is over, it can be transported to the CDC, hospital, port or third-party testing unit for reuse after being disinfected by professionals.
  5. Higher security: The mobile PCR laboratory must consider factors such as long-distance transportation and outdoor storage conditions. The test bench and equipment in the box have higher requirements for shock resistance, corrosion resistance, cold and heat resistance.
