Product Details:
|
| Product Name: | 2L Dual Planetary Laboratory Ball Mill Machine Agate Grinding | Input Size: | 3-10mm |
|---|---|---|---|
| Output Size: | Min. 0.1um | Capacity: | 1/3 Of Jar |
| Noise:: | Less Than 60db | Certification:: | ISO, CE |
| High Light: | Dual Planetary Laboratory Ball Mill Machine,Agate Laboratory Ball Mill Machine,2L agate ball mill |
||
2L Laboratory Dual Planetary Ball Mill 4*500ml Mill Jars & Frequency Controlling
Product Introduction
The ball mill is a necessary machine for materials mixing and powder grinding , it suitable for small batch and mass production. The input size required 3~10mm maximum and into output size 0.1µm minimum.
Working Principle
The planetary Ball Mill should be installed four ball grinding tanks. When the turntable rotates, the tank axis will do planetary movements, the balls and samples inside the tanks are impacted strongly in high speed , and samples are eventually ground into powder. Two or four grinding tanks can work together at one time
Applications
Mini ball mill is widely applied in many ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on.

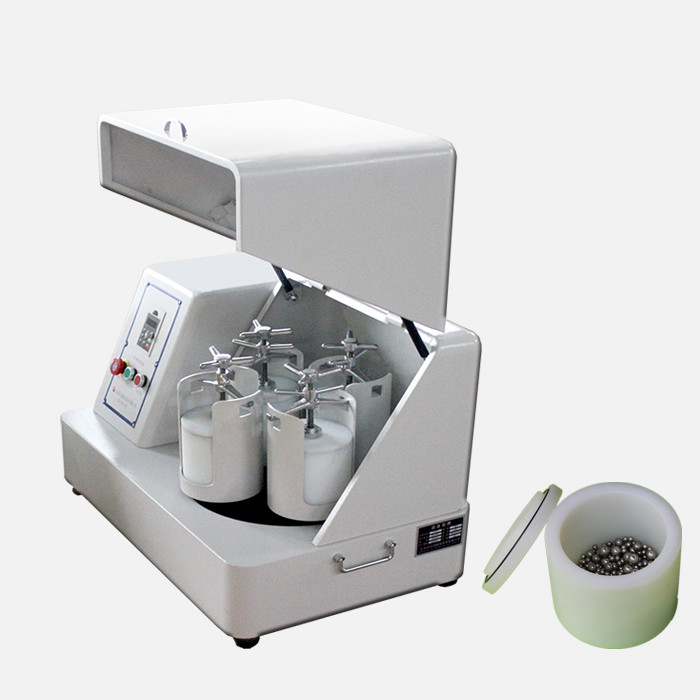

Product Display
Technical Features
| Drive Mode | Gear drive |
| Operation Mode | Two or four grinding tanks working together |
| Max Load Capacity | Less than 2/3 of total volume of grinding jars |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 Hours |
| Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
|
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
| YKM-2L | 500ml | 660ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
| YKM-4L | 1L | 1.3L | 35-340 | 70-680 | 60db | 0.75 | 80kg | 8750*470*590 |
| YKM-8L | 2L | 2.6L | 35-290 | 70-580 | 60db | 1.5 | 132 | 880*560*670 |
| YKM-12L | 3L | 4L | 35-290 | 70-580 | 60db | 1.5 | 170 | 880*560*670 |
| YKM-16 | 4L | 5.3L |
30-225 |
60-520 |
60db | 3 | 203 |
950*600*710 |
Accessories of Grinding Pots & Balls
