Product Details:
|
| Product Name: | Pharmaceutical 0.25KW 0.4L Micro Ball Mill Pulverizer | Power Supply: | 220V/110V/380V |
|---|---|---|---|
| Input Size: | Soft And Crispy Material≤10mm,Other Materials≤3mm | Output Size: | Min. 0.1um |
| Capacity: | 1/3 Of Jar | Certification:: | ISO, CE |
| High Light: | 0.25KW pharmaceutical ball mill,0.4L pharmaceutical ball mill,Pharmaceutical micro ball mill pulverizer |
||
Pharmaceutical 0.25KW 0.4L Micro Ball Mill Pulverizer
Product Introduction
YLK Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which
features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples
under the vacuum condition or filled with inert gas.
Working Principle
When the plate rotates, the tank axis makes the planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high-speed movement. The product can smash and blend various products of different materials. It has 3 types of mill methods:dry mill; wet mill ; vacuum mill. Two or four grinding jars can work together.
Applications
The product is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics,Chemical Engineering, Light Industry Medicine, Environmental Protection etc. It's widely used in research institutes, universities, enterprise laboratories and small batch producing manufacturer.

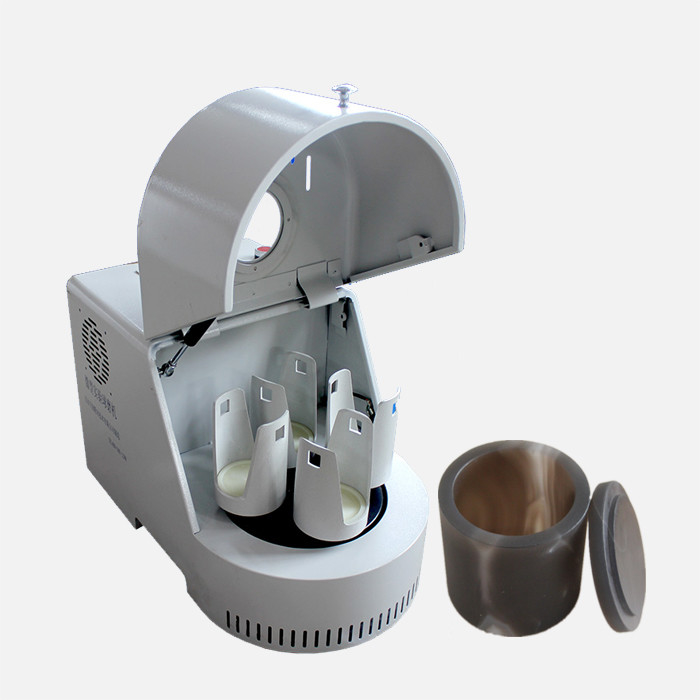

Product Display
Technical Features
| Drive Mode | Gear drive |
| Operation Mode | Two or four grinding tanks working together |
| Max Load Capacity | Less than 2/3 of total volume of grinding jars |
| Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
| Output Granule | Minimum 0.1µm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 Hours |
| Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
|
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
| YKM-0.4L | 100ml | 130ml | 45-430 | 90-870 | 58db | 0.25 | 29kg | 530*300*340 |
| YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
| YKM-2L | 500ml | 660ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
Advantages
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle owns high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, Speed adjustable.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Accessories of Grinding Pots & Balls
