Product Details:
|
| Product Name: | 1.5KW 12L Laboratory Rotational Ball Milling Pulverizer Machine PLC Control | Power Supply: | 110V/220V/380V |
|---|---|---|---|
| Input Size: | 3-10mm | Output Size: | Min. 0.1um |
| Capacity: | 1/3 Of Jar | Certification:: | ISO, CE |
| High Light: | PLC rotational ball milling pulverizer,12L rotational ball milling machine,1.5KW laboratory pulverizer machine |
||
1.5KW 12L Laboratory Rotational Ball Milling Pulverizer Machine PLC Control
Product Introduction
Planetary Mills are ideally suited for fine grinding of hard, medium-hard, soft, brittle, tough and moist materials. The comminution of the material to be ground takes place primarily through the high-energy impact of grinding balls in rotating grinding bowls.
The grinding can be performed dry, in suspension or in inert gas. In addition to comminution, you can use Planetary Mills for mixing and homogenising of emulsions and pastes or for mechanical alloying and activation in materials research.
Working Principle
When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder.
Applications
It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

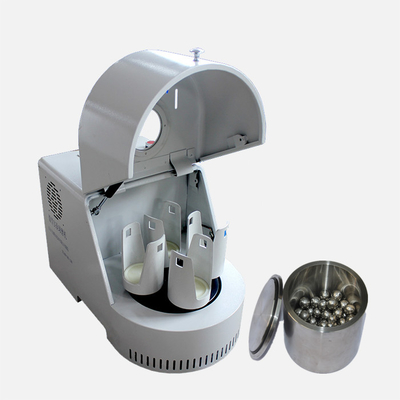

Product Display
Technical Features
| Drive Mode | Gear drive |
| Operation Mode | Two or four grinding tanks working together |
| Max Load Capacity | Less than 2/3 of total volume of grinding jars |
| Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
| Output Granule | Minimum 0.1µm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 Hours |
| Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
|
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
| YKM-12L | 3L | 4L | 35-290 | 70-580 | 60db | 1.5 | 170 | 900*600*640 |
| YKM-20 | 5L | 6.6L |
25-215 |
50-430 |
60db | 4 | 350 |
1350*780*750 |
| YKM-40 | 10L | 13.3L |
20-195 |
40-390 |
605db | 5.5 | 420 |
1350*880*850 |
| YKM-60L | 15L | 20L |
20-180 |
40-360 |
68db |
7.5 | 560 |
1550*950*1000 |
| YKM-100L | 25L | 33L |
20-120 |
40-240 |
40-240 |
11 | 850 |
1800*1100*1350 |
Advantages
1. Powerful and quick grinding down to nano range.
2. Planetary movement principle owns high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Accessories of Grinding Pots & Balls
