Product Details:
|
| Product Name: | 34L 100mlx9pcs Laboratory Shaker Machine Orbital Shaker Incubator | Shake Frequency: | 30-300rpm ±1 Rpm |
|---|---|---|---|
| Shake Range: | 26mm | Temperature Range: | Room Temperature +5℃-60℃ (±0.1℃) |
| Standard Configuration: | 100mlx9pcs | Cubage: | 34L |
| High Light: | Laboratory orbital shaker incubator,34L Laboratory Shaker Machine,100mlx9pcs Laboratory Shaker Machine |
||

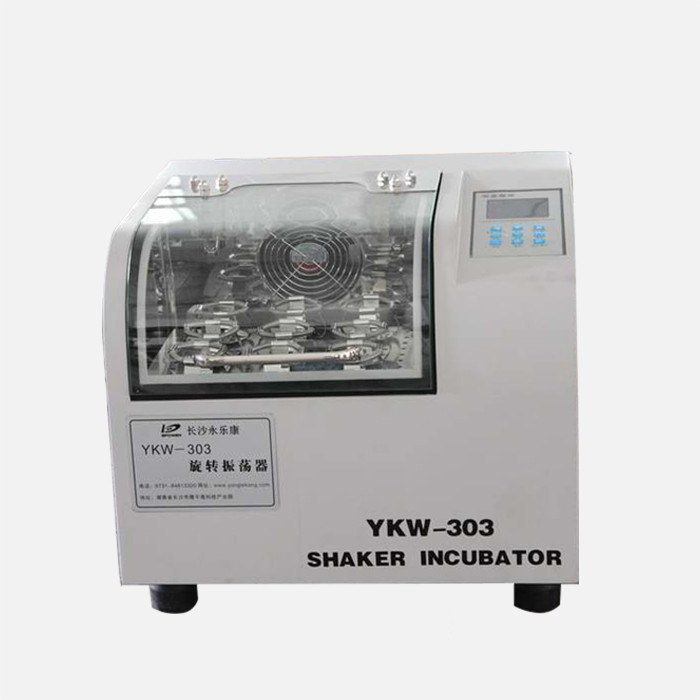

34L 100mlx9pcs Laboratory Shaker Machine Orbital Shaker Incubator
Product Introduction
Orbital Shaker Incubator integrates automatic liquid shaking, separating and temperature control function together, The shake plate applies to low speed big range rotation or high speed point vibration. This machine solves the issue of very high speed crash while motor starting. Even if starting under high speed rotation set, the shake plate will still speed up slowly with stability to ensure the safety of experiment samples.
Application
widely used in germ culture, ferment, hybridization, and research of biochemical reaction, enzyme and cellular tissue and all those require high temperature and oscillation frequency. It has a wide and important range of application in research of medicine, biology, numerator, pharmacy, food and environmental protection.
Product Specifications
| Model No. | YKW-303 | YKW-200B |
| Rotation Frequency | 30～300rpm | 30～400rpm |
| Frequency Accuracy | ±1 rpm | ±1 rpm |
| Vibration Amplitude | φ26mm | φ26mm |
| Max. capacity |
50ml x 12pcs, or 100ml x 9pcs |
100ml×16pcs, or 250ml×12pcs, or 500ml × 9pcs |
| Standard Configuration | 100ml x 9pcs |
50ml×4pcs, or 100ml×4pcs, or 250ml×3pcs,or 500ml×3pcs |
| Tray Dimension | 295mm×245mm | 450mm×410mm |
| Timing Range | 0～999 hours | 0～999 hours |
| Temperature Control Range | Ambient Temperature 5℃～60℃ | 4℃～60℃ ( refrigeration type) |
| Temperature Control Accuracy | ±0.1℃ | ±0.1℃ |
| Temperature Uniformity | ±1℃ | ±1℃ |
| Display Mode | LCD | LCD |
| Tray Quantity | 1pcs | 1pcs |
| External Dimension | 460mm × 410mm × 390mm | 780mm × 682mm × 560mm |
| Net Weight | 31KG | 100KG |
| Inner Chamber size & volume | 340mm × 285mm × 200mm(20L) | 480mm × 450mm × 320mm(70L) |
| Power | 220W,AC220V～240V, 50H60Z～60HZ | 580W,AC220V～240V,50H60Z～60HZ |
Product Display
Product Features
1. Integrated with incubator and shaker to save space and cost.
2. High quality steel shell, polished stainless steel chamber.
3. Large LCD screen to display temperature and shaking speed.
4. With operation data memory function to eliminate faulty operation.
5. Non-volatile memory saves settings during a power outage and automatically restarts the unit as originally programmed after power is restored.
6. Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
7. Equipped with leakage protection.
