Product Details:
|
Product Name: | 3-10mm Lab Jar Mill , ISO Ultra Fine Powder Ball Mill Equipment | Power Supply: | 220V/110V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 15um |
Capacity: | 1/3 Of Jar | Item: | Ultra Fine Powder Grinding Machine |
Highlight: | 3mm lab jar mill,10mm lab jar mill,ISO ball mill equipment |

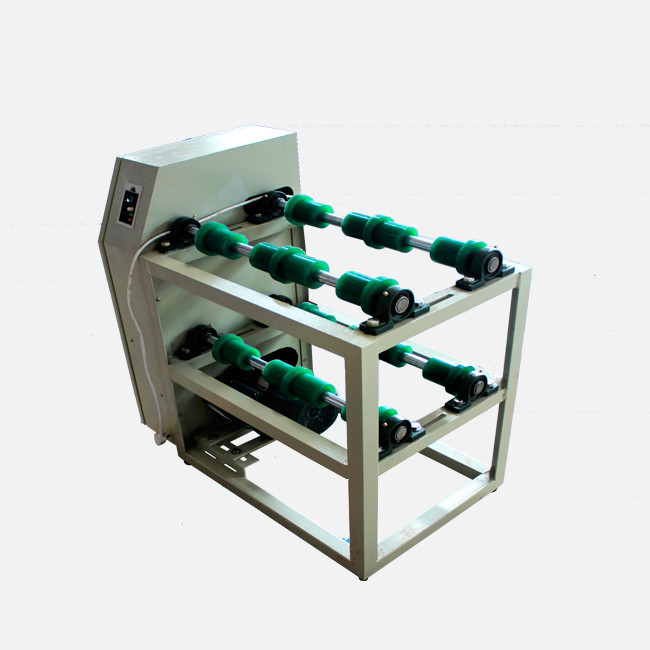

3-10mm Lab Jar Mill , ISO Ultra Fine Powder Ball Mill Equipment
Product Introduction
Lab roll mill is the best grinding and mixing machine for lab and small quantity production. With pretty appearance, tight structure, easy operation, high efficiency, uniform granularity.
Working Principle
When ball mill works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media's rolling and sliding. The final granularity can be amounted to 5μm-13μm.
Applications
It is widely applied in electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc.
Product Display
Product Parameters
Category | Model No. |
Samples Volume (L) |
Dimension /Net Weight |
Power Supply |
Rotate Speed (RPM) |
Length of Roller (MM) |
Max Load Per Jar (KG) |
2 work station | YKQ-2-5L | 3.3L | 890*440*685mm/59kg | 0.75KW/220V | 50-410 | 609 | 35 |
YKQ-2-10L | 6.7L | 1040*550*690mm/80kg | 1.5KW/220V | 40-340 | 762 | 80 | |
YKQ-2-15L | 10L | 1040*550*690mm/80kg | 1.5KW/220V | 40-340 | 762 | 80 | |
4 work station | YKQ-4-5L | 6.7L | 890*660*690mm/70kg | 0.75KW/220V | 50-410 | 609 | 35 |
YKQ-4-15 | 20L | 1040*800*690mm/95kg | 1.5KW/220V | 40-340 | 762 | 80 | |
YKQ-4-20 | 27L | 1270*820*690mm/122kg | 2.2KW/380V | 40-365 | 976 | 120 | |
8 work station | YKQ-8-5 | 14L | 890*660*960mm/106kg | 1.5KW/220V | 50-410 | 609 | 35 |
YKQ-8-15 | 40L | 1040*800*960mm/152kg | 2.2KW/380V | 40-365 | 762 | 80 |
Machine Characteristics
Accessories of Grinding Pots & Balls
