Compact 60 - 570RPM 5L Laboratory Scale Roll Ball Mill

Compact 60 - 570RPM 5L Laboratory Scale Roll Ball Mill
Compact 60 - 570RPM 5L Laboratory Scale Roll Ball Mill Compact 60 - 570RPM 5L Laboratory Scale Roll Ball Mill

Large Image :  Compact 60 - 570RPM 5L Laboratory Scale Roll Ball Mill

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YLK-Q-5
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1000-USD2500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

Compact 60 - 570RPM 5L Laboratory Scale Roll Ball Mill

Description
Product Name: Laboratory Roll Ball Mill Power Supply: 220V/110V
Input Size: 3-10mm Output Size: Min. 15um
Capacity: 1/3 Of Jar Noise:: Less Than 60db
Certification:: ISO, CE
High Light:

5L Laboratory Roll Ball Mill

,

570RPM Laboratory Roll Ball Mill

,

60RPM Laboratory Ball Mill

Laboratory Roll Ball Mill



Product Introduction

Laboratory roll mill machine is a kind of sample pulverizing machine, which can grind coarse particles into micro powders. It can mill the materials from 10mm maximum into 15um minimum powder.



Working Principle

When mill works, the grinding media and the materials inside the tank are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.



Applications

It is widely applied in electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc.

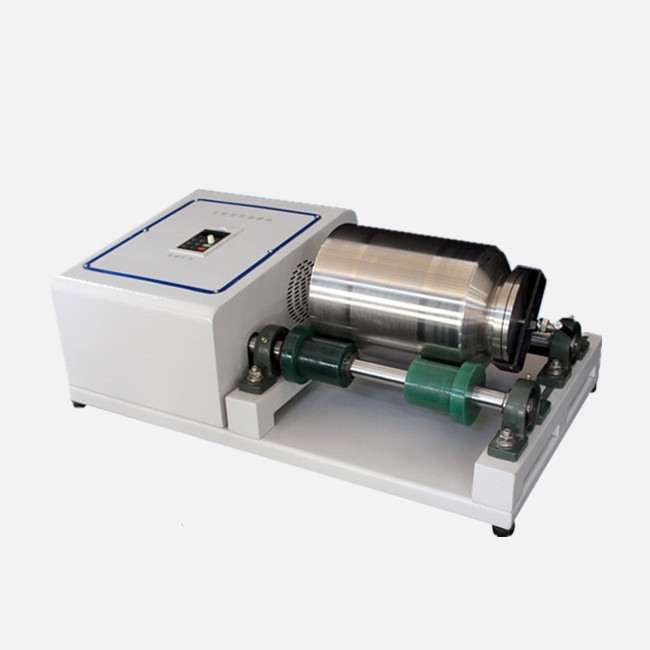

Product Display

Compact 60 - 570RPM 5L Laboratory Scale Roll Ball Mill 0



Product Parameters

Model YLK-Q-5 YLK-Q-10 YLK-Q-15
Jar Volume 5L 10L 15L
Sample Capacity per time (L) 1.7L 3.3L 5L
Power (W) 400W 750W 750W
Rated Voltage(V) 220V 220V 220V
Maximum Load (KG) 35kg 50kg 80kg
Speed Mode Frequency Conversion Speed Regulation
Rotarion Speed (r/min) 60-570 60-570 60-570
Dimensions(mm) 730*415*260 840*435*270 840*435*270
Station Space (mm) 260 340 340
Roller Distance(mm) 120 140 140
Tank Material Ceramic, Stainless steel, Corundum, Polyurethane, Nylon, PTFE, etc.
Medium Ball Alumina, Zirconia, Agate, Hardened steel, Stainless steel, etc.
Remark: Loading rate of ball mill can not exceed 70% of the effective volume of grinding cylinder.



Machine Characteristics

  1. Compact Structure; Easy to operate;
  2. Efficient working; Uniform grinding particle size by horizontal milling;

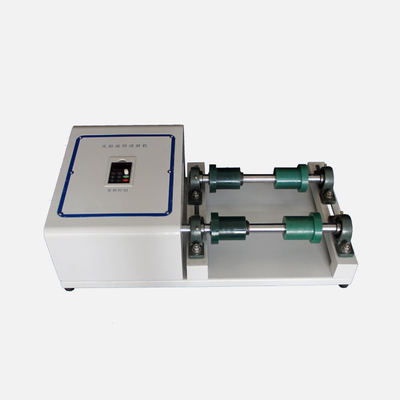

  3. Applied to different size jars by adjusting the movable axises;
  4. Convenient to exchange jars, applied for wet/dry mill.



Accessories of Grinding Pots & Balls

Compact 60 - 570RPM 5L Laboratory Scale Roll Ball Mill 1
