Real Time Medical Diagnostic Mobile PCR Lab 13.5m X 2.98m X 2.98m

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

Real Time Medical Diagnostic Mobile PCR Lab 13.5m X 2.98m X 2.98m

Real Time Medical Diagnostic Mobile PCR Lab 13.5m X 2.98m X 2.98m
Real Time Medical Diagnostic Mobile PCR Lab 13.5m X 2.98m X 2.98m

Large Image :  Real Time Medical Diagnostic Mobile PCR Lab 13.5m X 2.98m X 2.98m

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO,CE
Model Number: YFS-14
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD65,000-USD120,000
Packaging Details: 40 foot container
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C,Credit Card, Alibaba Trade
Supply Ability: 50units per month

Real Time Medical Diagnostic Mobile PCR Lab 13.5m X 2.98m X 2.98m

Description
Product Name: Mobile Diagnostic Labs And Containerized Isolation Medical PCR Laboratory Model Number: YFS-14
Dimension: (L )13.5m X (W)2.98m X (H)2.98m Warranty: Lifetime
Highlight:

Medical Mobile PCR Lab

,

2.98m Mobile PCR Lab

,

13.5m real time pcr diagnostic lab

Mobile Diagnostic Labs And Containerized Isolation Medical PCR Laboratory



Product Introduction

YLK Mobile Container PCR laboratory is designed for virus infected areas where specialized laboratory mechanical contractors are not present. It can be rapidly deployed to helpfight the virus threat. Such as COVID-19 antibody serology testing, basic TB direct screening and HIV testing etc. Our new fully transportable container laboratories can meet these challenges.



Product Structure



Areas Main Functions Main equipment configuration (for reference only)
Reagent Preparation Area The experimental area is mainly used to prepare and sub-package the stored reagents and prepare the main reaction mixture. Ultra-clean workbench, refrigerators, mixer, pipette, UV lamp
Sample Preparation Area This area is mainly used to store the clinical samples, extract the nucleic acids (RNA, DNA), store and add the acids in the amplification reaction tube and synthesize CDNA in the RNA measurement process. Biological safety cabinet, refrigerators, high-speed desktop refrigerated centrifuge, mixer, water bath or heating module, nucleic acid extractor, micro sampler (covering 0.2-1000ul), UV lamp
Amplification Analysis Area This area is mainly used to amplify DNA or cDNA. In addition, adding the prepared DNA template and synthesized cDNA (from the sample preparation area) and the preparation of the main reaction mixture (from the reagent storage and preparation areas) into the reaction mixture can be carried out in this area. Real-time fluorescent PCR quantitative instrument, centrifuge, pipette, UV lamp





Product Parameters



Model Dimension(L x W x H) COVID-19 Detection Efficiency
YFS-14 13.5m x 2.98m x 2.98m
  1. Place a double safety cabinet in the sample preparation room, and be equipped with two 96-holes automatic nucleic acid extractors to extract and purify DNA/RNA from 96 samples at the same time. Amplification analysis room can be placed 4 sets of 96-holes reaction plate real-time fluorescent quantitative PCR instrument to achieve simultaneous analysis of 384 nucleic acid samples.
  2. The experimental efficiency is 96 * 4 detection volume every 2.5-3 hours, and the maximum turnover of 24 hours detection is 8-9 times, that is, the maximum detection volume in 24 hours is 96 * 4 * 9 = 3456 samples. If the 1:10 mixed inspection method is adopted, the maximum inspection volume in 24 hours can reach 34,560 person-times.



Product Display

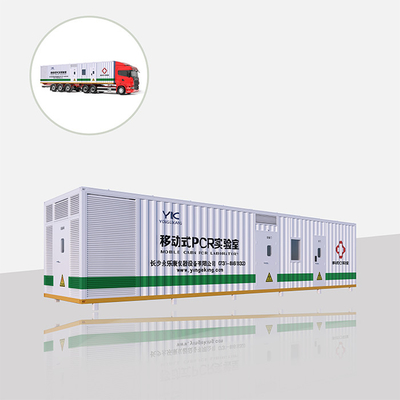

Real Time Medical Diagnostic Mobile PCR Lab 13.5m X 2.98m X 2.98m 0



Product Features

  1. Small cover area: It is a standard container. The experimental process including the equipments inside are built in accordance with the standard PCR laboratory. The storage area is about 52.5 square meters.
  2. High independence: The container has completed all the installations before leaving the factory. In extreme conditions, it can even operate independently without external power supply and water supply. It can be used as a vehicle-mounted laboratory in an emergency, and it is not required when transported to the place where the epidemic occurs. Any installation can be used.
  3. Manage easily: The recommended location for the container is generally in a remote place outdoors, which is beneficial to the isolation of patients or the control of the spread of the virus. Container PCR laboratory effectively avoids aggregation and infectivity.
  4. Re-used available: The mobile PCR laboratory can be reused. After the epidemic is over, it can be transported to the CDC, hospital, port or third-party testing unit for reuse after being disinfected by professionals.
  5. Higher security: The mobile PCR laboratory must consider factors such as long-distance transportation and outdoor storage conditions. The test bench and equipment in the box have higher requirements for shock resistance, corrosion resistance, cold and heat resistance.
