6-8pcs Automatic Distillation System With Cooling Water Circulation

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

6-8pcs Automatic Distillation System With Cooling Water Circulation

6-8pcs Automatic Distillation System With Cooling Water Circulation
6-8pcs Automatic Distillation System With Cooling Water Circulation

Large Image :  6-8pcs Automatic Distillation System With Cooling Water Circulation

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YDL-06
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD2500-USD4000
Packaging Details: Foam+ plywood Case
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal, Alibaba Trade, Credit Card
Supply Ability: 400units per month

6-8pcs Automatic Distillation System With Cooling Water Circulation

Description
Product Name: Automatic Distillation InstrumentAutomatic Distillation Instrument With Built-In Cooling Water Circulation Cooling Way: Built-in Cooling Water Circulation, No Need External Water Source
Heating Method: Far Infrared Radiation Heating, No Fire Distillation Speed: 2-10ml/min
High Light:

8pcs Automatic Distillation System

,

6pcs Automatic Distillation System

,

Cooling Water Circulation auto distillation unit

Automatic Distillation Instrument With Built-In Cooling Water Circulation



Product Introduction

YDL series automatic distillation instrument is suitable for detecting cyanide, volatile phenol, ammonia nitrogen, fluoride, volatile fatty acid and other components in water samples; detecting cyanide, sulfide and other components in soil and solid waste samples; detecting sulfur dioxide, formaldehyde, ethanol concentration and other components in food samples by conventional distillation ;



Applications

Widely used in environmental monitoring, scientific research institutions, university laboratories, chemical plants, factories and mines, agricultural science and technology institutes, hazardous waste treatment stations, customs etc.



Product Parameters

Model YDL-06 YDL-08 YDL-10
Distillation Unit 6pcs 8pcs 10pcs
Display 7-inch high-brightness TFT LCD
Heating Method Far infrared radiation heating, no fire
Distillation Speed 2-10ml/min
Time Control 0-500min free setting available
Weight Setting 0-500g free setting available
Power Supply 4960W,220V/50HZ 6560W,220V/50HZ 8160W,220V/50HZ
Individual furnace can be set 100-800W
End Point Control Weight distillation end point control, accuracy ± 2ml
Anti-back Suction function Yes
A Single Point Of Control Yes
Cooling Way Built-in cooling water circulation, no need external water source
Flasks Volume 500ml*6 500ml*8 500ml*10
Product Size 900*510*610mm 1170*510*610mm 1440*510*610mm
Net Weight 66Kgs 78Kgs 90Kgs

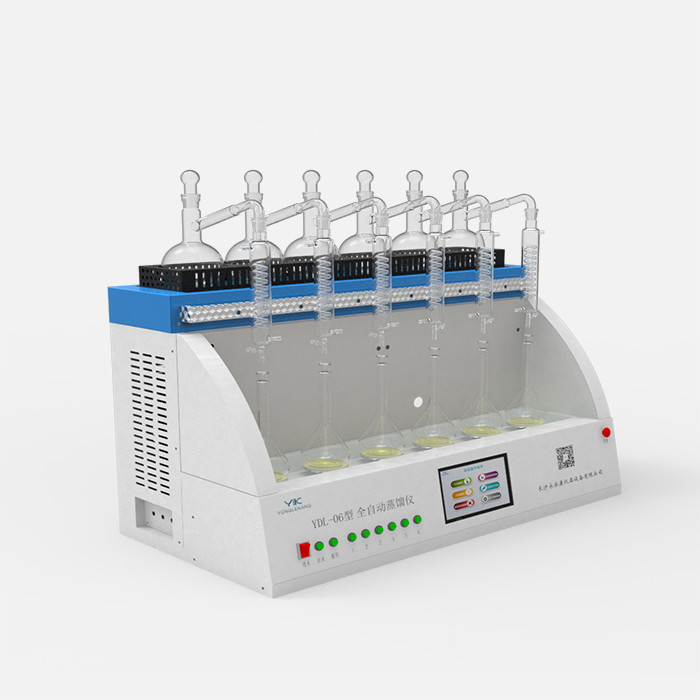

Product Display

6-8pcs Automatic Distillation System With Cooling Water Circulation 0



Product Advantages

  1. Imported heating furnace:  the highest temperature is up to 800 °C.
  2. Distillation bottles; quartz material with high temperature resistant.
  3. Precision sensor: high-precision weight sensor
  4. TFT display: 7-inch high-brightness.
  5. Experimental parameter storage.
  6. Single point control: each heating furnace is controlled separately
  7. Inlet and drainage system: automatic water inlet and drainage system, convenient and fast.
  8. Anti-back suction system: unique anti-back suction system, PTFE anti-back suction solenoid valve, corrosion resistance, long service life.
  9. Cooling system: Bulit-in cooling system.
