Institutions Automatic Distillation System With TFT LCD 4960W

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

Institutions Automatic Distillation System With TFT LCD 4960W

Institutions Automatic Distillation System With TFT LCD 4960W
Institutions Automatic Distillation System With TFT LCD 4960W Institutions Automatic Distillation System With TFT LCD 4960W Institutions Automatic Distillation System With TFT LCD 4960W

Large Image :  Institutions Automatic Distillation System With TFT LCD 4960W

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YDL-HP
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD2500-USD4000
Packaging Details: Foam+ plywood Case
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal, Alibaba Trade, Credit Card
Supply Ability: 400units per month

Institutions Automatic Distillation System With TFT LCD 4960W

Description
Product Name: Automatic Distillation Instrument Cooling Way: Built-in Cooling Water Circulation, No Need External Water Source
Heating Method: Far Infrared Radiation Heating, No Fire Distillation Speed: 2-10ml/min
High Light:

4960W Automatic Distillation System

,

TFT LCD Automatic Distillation System

,

LCD auto distillation unit

Automatic Distillation System



Product Introduction

YDL series automatic distillation instrument is a new designed according to national standard. It has the advantages of uniform heating, time and weight automatic control of distillation end point, anti-back suction, cooling water circulation return, etc. Also it is easy to operate, beautiful and practical, energy saving etc. It is used for distillation treatment of volatile phenol, ammonia nitrogen, cyanide, sulfur dioxide and other items in the water sample.



Applications

Widely used in environmental monitoring, scientific research institutions, university laboratories, chemical plants, factories and mines, agricultural science and technology institutes, hazardous waste treatment stations, forestry departments, food and drug analysis, customs etc.



Product Parameters

Model YDL-06 YDL-08 YDL-10
Distillation Unit 6pcs 8pcs 10pcs
Display 7-inch high-brightness TFT LCD
Heating Method Far infrared radiation heating, no fire
Distillation Speed 2-10ml/min
Time Control 0-500min free setting available
Weight Setting 0-500g free setting available
Power Supply 4960W,220V/50HZ 6560W,220V/50HZ 8160W,220V/50HZ
Individual furnace can be set 100-800W
End Point Control Weight distillation end point control, accuracy ± 2ml
Anti-back Suction function Yes
A Single Point Of Control Yes
Cooling Way Built-in cooling water circulation, no need external water source
Flasks Volume 500ml*6 500ml*8 500ml*10
Product Size 900*510*610mm 1170*510*610mm 1440*510*610mm
Net Weight 66Kgs 78Kgs 90Kgs

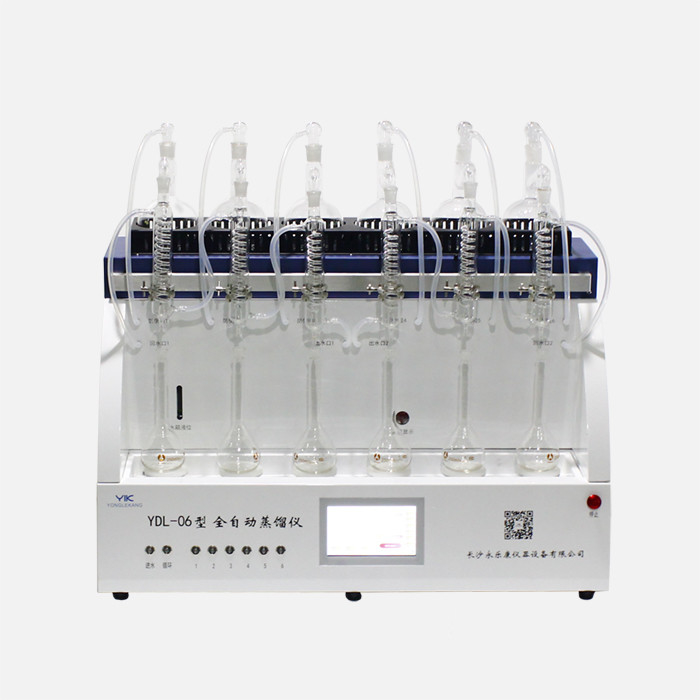

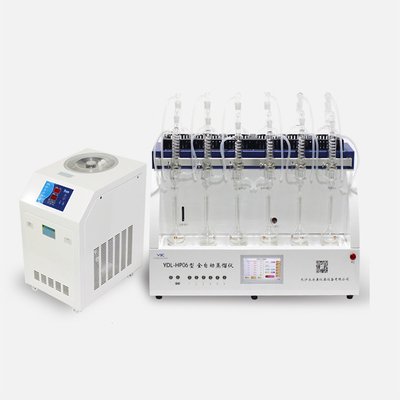

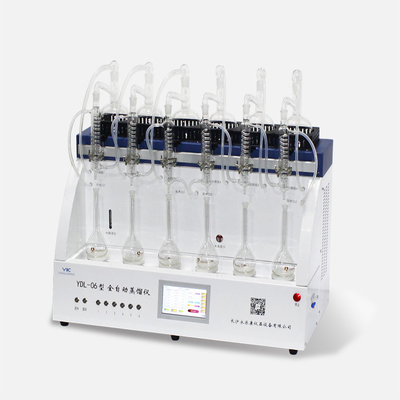

Product Display

Institutions Automatic Distillation System With TFT LCD 4960W 0



Product Advantages

  1. Imported heating furnace: It adopts imported far-infrared ceramic heating furnace with long service life and the highest temperature is up to 800 °C.
  2. Distillation bottles; quartz material which is high temperature resistant.
  3. Precision sensor: high-precision weight sensor
  4. TFT display: 7-inch high-brightness TFT LCD screen
  5. Experimental parameter storage: The experimental parameters can be edited and stored.
  6. Single point control: each heating furnace is controlled separately
  7. Inlet and drainage system: automatic water inlet and drainage system, convenient and fast.
  8. Anti-back suction system: unique anti-back suction system, PTFE anti-back suction solenoid valve, corrosion resistance, long service life.
  9. Cooling system: Bulit-in cooling system, no need external water.
