Product Details:
|
Product Name: | Lab Small Display Essential Oil Alcohol Ethanol Distillation Evaporator | Cooling Way: | Built-in Cooling Water Circulation, No Need External Water Source |
---|---|---|---|
Heating Method: | Far Infrared Radiation Heating, No Fire | Distillation Speed: | 2-10ml/min |
Highlight: | Lab Automatic Distillation System,2ml/min Automatic Distillation System,10ml/min distillation instrument |
Lab Small Display Essential Oil Alcohol Ethanol Distillation Evaporator
Product Introduction
YDL series automatic distillation instrument is a new designed according to national standard. It has the advantages of uniform heating, time and weight automatic control of distillation end point, anti-back suction, cooling water circulation return, etc. It is used for distillation treatment of volatile phenol, ammonia nitrogen, cyanide, sulfur dioxide and other items in the water sample.
Applications
Widely used in environmental monitoring, scientific research institutions, chemical plants, factories and mines, agricultural science and technology institutes, hazardous waste treatment stations, forestry departments, food and drug analysis, etc.
Product Parameters
Model | YDL-06 | YDL-08 | YDL-10 |
Distillation Unit | 6pcs | 8pcs | 10pcs |
Display | 7-inch high-brightness TFT LCD | ||
Heating Method | Far infrared radiation heating, no fire | ||
Distillation Speed | 2-10ml/min | ||
Time Control | 0-500min free setting available | ||
Weight Setting | 0-500g free setting available | ||
Power Supply | 4960W,220V/50HZ | 6560W,220V/50HZ | 8160W,220V/50HZ |
Individual furnace can be set 100-800W | |||
End Point Control | Weight distillation end point control, accuracy ± 2ml | ||
Anti-back Suction function | Yes | ||
A Single Point Of Control | Yes | ||
Cooling Way | Built-in cooling water circulation, no need external water source | ||
Flasks Volume | 500ml*6 | 500ml*8 | 500ml*10 |
Product Size | 900*510*610mm | 1170*510*610mm | 1440*510*610mm |
Net Weight | 66Kgs | 78Kgs | 90Kgs |

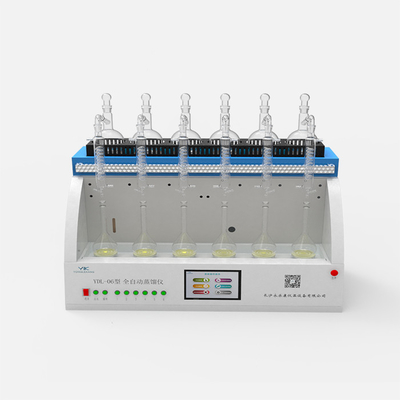

Product Display
Product Advantages
