Product Details:
|
| Product Name: | ISO 2-10ml/Min Automatic Distillation Unit , Water Chiller Distillation Instrument | Cooling Way: | Connected With Water Chiller |
|---|---|---|---|
| Heating Method: | Far Infrared Radiation Heating, No Fire | Distillation Speed: | 2-10ml/min |
| High Light: | ISO automatic distillation unit,10ml/min automatic distillation unit,2ml/min distillation instrument |
||
ISO 2-10ml/Min Automatic Distillation Unit , Water Chiller Distillation Instrument
Product Introduction
YDL series automatic distillation instrument is a new designed according to national standard. it is easy to operate, beautiful and practical, energy saving etc. It is used for distillation treatment of volatile phenol, ammonia nitrogen, cyanide, sulfur dioxide and other items in the water sample.
Applications
It is widely used in food processing, feed production, tobacco husbandry, soil fertilizer, environmental monitoring, medicine, agriculture, scientific research, teaching, quality supervision, inspection and quarantine and other fields
Product Parameters
| Model | YDL-HP06 | YDL-HP08 |
| Distillation Unit | 6pcs | 8pcs |
| Display | 7-inch high-brightness TFT LCD | |
| Heating Method | Far infrared radiation heating, no fire | |
| Distillation Speed | 2-10ml/min | |
| Time Control | 0-500min free setting available | |
| Weight Setting | 0-500g free setting available | |
| Power Supply | 4960W,220V/50HZ | 6560W,220V/50HZ |
| Individual furnace can be set 100-800W | ||
| End Point Control | Weight distillation end point control, accuracy ± 2ml | |
| Anti-back Suction function | Yes | |
| A Single Point Of Control | Yes | |

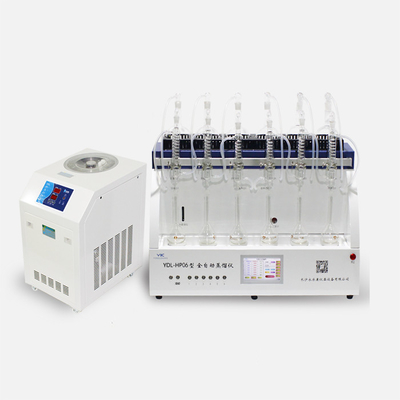

| Cooling Way | Connected with water chiller | |
| Flasks Volume | 500ml*6 | 500ml*8 |
| Product Size | 900*510*610mm | 1170*510*610mm |
| Net Weight | 90Kgs | 102Kgs |

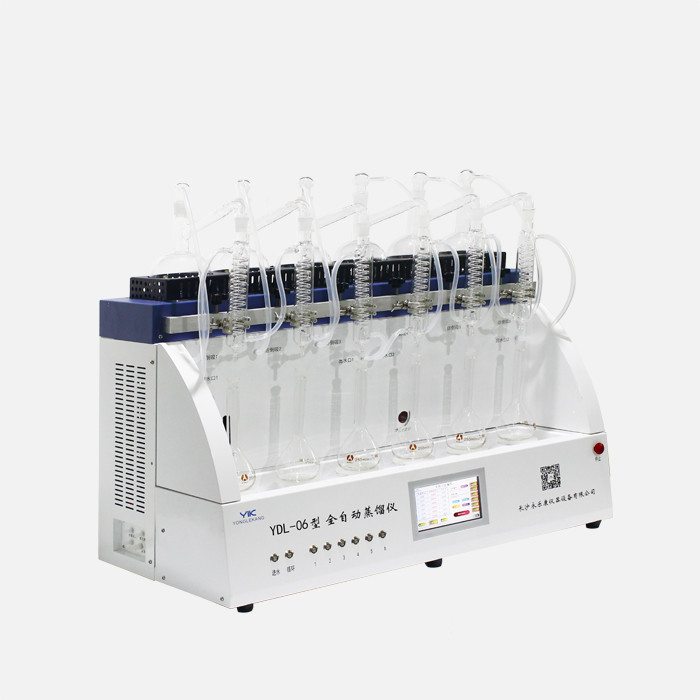

Product Display
Product Advantages
