1KG 20cm Lab Soil Sampling Instruments For Soil Collecting

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

1KG 20cm Lab Soil Sampling Instruments For Soil Collecting

1KG 20cm Lab Soil Sampling Instruments For Soil Collecting
1KG 20cm Lab Soil Sampling Instruments For Soil Collecting 1KG 20cm Lab Soil Sampling Instruments For Soil Collecting

Large Image :  1KG 20cm Lab Soil Sampling Instruments For Soil Collecting

Product Details:
Place of Origin: China
Brand Name: YLK
Model Number: YKT-C04
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T,Paypal, Alibaba Trade, Credit Card
Supply Ability: 500units per month

1KG 20cm Lab Soil Sampling Instruments For Soil Collecting

Description
Certification: ISO, CE Product Name: Lab Soil Sampler
Usage: Soil Collecting Sampling Diameter: 5cm
Sampling Length: 20cm Sampling Volume: 1kg
High Light:

1KG Soil Sampling Instruments

,

20cm Soil Sampling Instruments

,

Lab soil sample test kit

Lab Soil Sampler



Product Introduction

YKT-C04 soil sampler adopts stainless steel sampling tube with built-in PVC lining, and external engineering plastic cutting head to ensure that the sampled product does not contact with metal. The closed circular cutting head adopts a unique double convex design, which reduces sampling resistance and soil Compression rate, threaded connection between the sampling tube and the cutting head to avoid the cutting head from falling off. The YKT-C04 soil sampler is equipped with a stainless steel cutting head for collecting round soil. The YKT-C04 sampling diameter is 5CM and the sampling length is 20CM. , A single point sampling volume is about 1KG.



Operation

  1. Install the cutting head, PVC Liner, Sampling tube and Sample Tube Holder.
  2. Connect the hitting handle, extend rod, drill, screw thread connection.
  3. Select the sampling area.
  4. Put the drill on the sampling area, and one person hold the hitting handle with two hands, the other person hit the handle with a hammer, then drill into the soil.
  5. After reaching the sampling depth, pull the drill body up, then the soil is retained in the drill, After that, discharge the sampling tube holder, and pull the lining out, the soil sample with the lining out, thus completed a sampling.
  6. Repeat the above procedures and continue sampling.

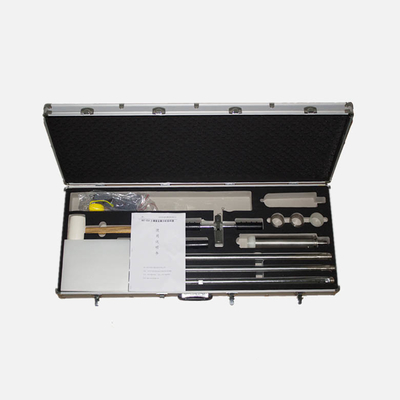

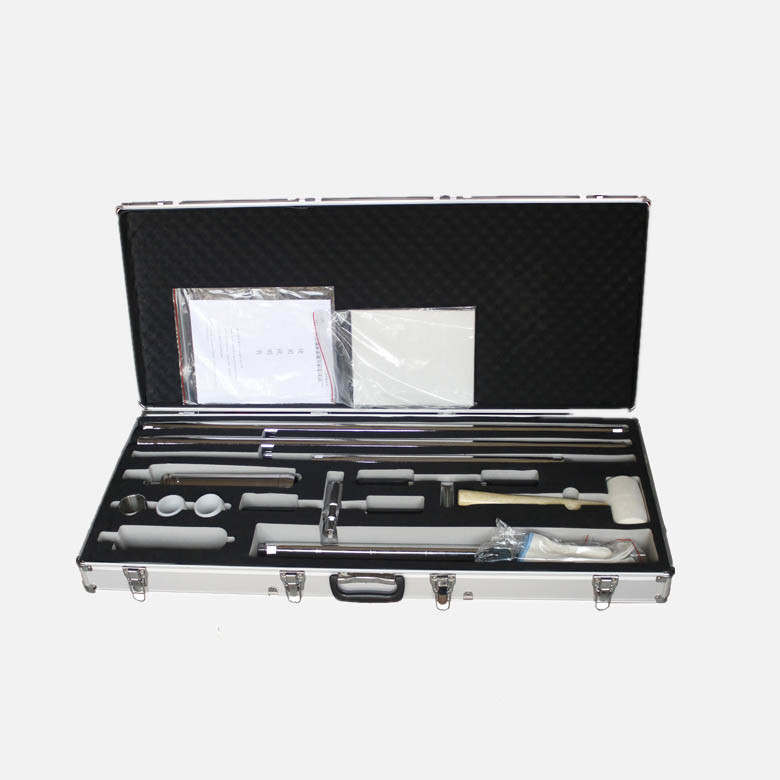

Product Display

1KG 20cm Lab Soil Sampling Instruments For Soil Collecting 0





Standard Configurations

  1. Stainless steel sampler: 1pc
  2. Engineer plastic cutting head: 2pcs
  3. Sample Tube Holder: 1pc
  4. Hammer: 1pc
  5. Wrench: 2pcs
  6. Glove Box: 1pc
  7. PVC liner: 20pcs
  8. Stainless Steel cutting head: 2pcs
  9. 1M Extension Rod: 5pcs
  10. Bamboo knife, Bamboo Scraper: 1 each
  11. 3m steel tape: 1M
  12. Canvas Pack 1
  13. Optional Aluminum Case
