1kg 20cm Soil Sampling Instruments , Stainless Steel Soil Sample Test Kit

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

1kg 20cm Soil Sampling Instruments , Stainless Steel Soil Sample Test Kit

1kg 20cm Soil Sampling Instruments , Stainless Steel Soil Sample Test Kit
1kg 20cm Soil Sampling Instruments , Stainless Steel Soil Sample Test Kit 1kg 20cm Soil Sampling Instruments , Stainless Steel Soil Sample Test Kit

Large Image :  1kg 20cm Soil Sampling Instruments , Stainless Steel Soil Sample Test Kit

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKT-C04
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T,Paypal, Alibaba Trade, Credit Card
Supply Ability: 500units per month

1kg 20cm Soil Sampling Instruments , Stainless Steel Soil Sample Test Kit

Description
Product Name: Lab Soil Sampler Usage: Soil Collecting
Certification: ISO, CE Sampling Diameter: 5cm
Sampling Length: 20cm Sampling Volume: 1kg
Highlight:

1kg Soil Sampling Instruments

,

20cm Soil Sampling Instruments

,

Stainless Steel soil sample test kit

Standard Stainless Steel Soil Sampler Cutting Ring Hand Heart Core Sampler Kit



Product Introduction

YKT-C04 soil sampler is used to obtain samples that adequately represent each surface material that is significant to the project design and construction.



Operation

  1. Install the cutting head, PVC Liner, Sampling tube and Sample Tube Holder.
  2. Connect the hitting handle, extend rod, drill, screw thread connection.
  3. Select the sampling area.
  4. Put the drill on the sampling area, and one person hold the hitting handle with two hands, the other person hit the handle with a hammer, then drill into the soil.
  5. After reaching the sampling depth, pull the drill body up, then the soil is retained in the drill, After that, discharge the sampling tube holder, and pull the lining out, the soil sample with the lining out, thus completed a sampling.
  6. Repeat the above procedures and continue sampling.



Product Display

1kg 20cm Soil Sampling Instruments , Stainless Steel Soil Sample Test Kit 0

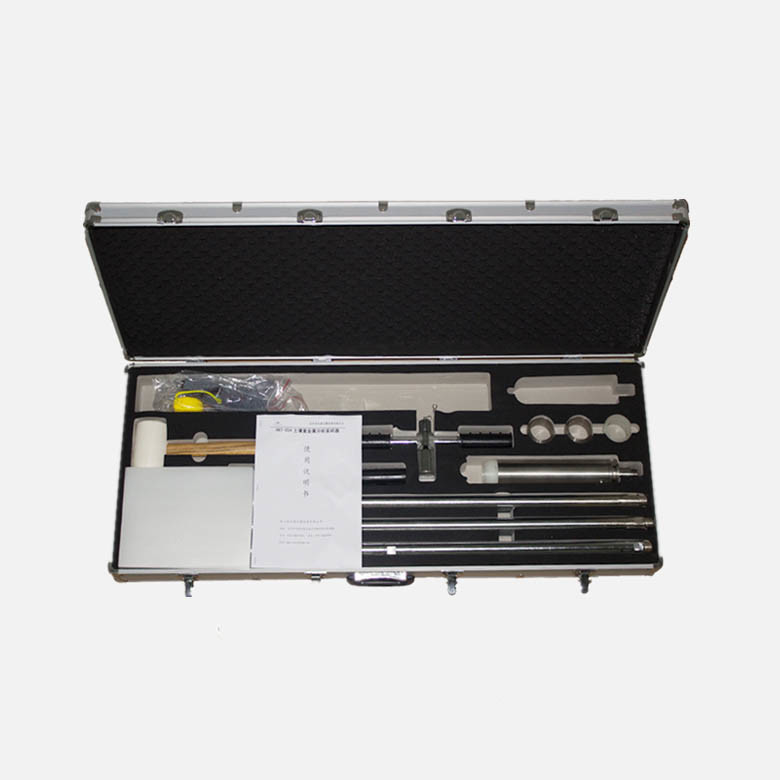

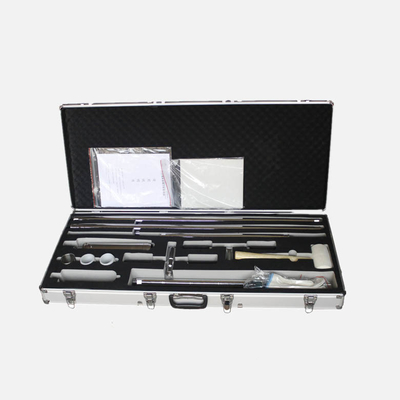

Standard Configurations

  1. Stainless steel sampler: 1pc
  2. Engineer plastic cutting head: 2pcs
  3. Sample Tube Holder: 1pc
  4. Hammer: 1pc
  5. Wrench: 2pcs
  6. Glove Box: 1pc
  7. PVC liner: 20pcs
  8. Stainless Steel cutting head: 2pcs
  9. 1M Extension Rod: 5pcs
  10. Bamboo knife, Bamboo Scraper: 1 each
  11. 3m steel tape: 1M
  12. Canvas Pack 1
  13. Optional Aluminum Case
