304 Stainless Steel Soil Sampling Instruments , 1-5L Sediment Grab Sampler

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

304 Stainless Steel Soil Sampling Instruments , 1-5L Sediment Grab Sampler

304 Stainless Steel Soil Sampling Instruments , 1-5L Sediment Grab Sampler
304 Stainless Steel Soil Sampling Instruments , 1-5L Sediment Grab Sampler 304 Stainless Steel Soil Sampling Instruments , 1-5L Sediment Grab Sampler

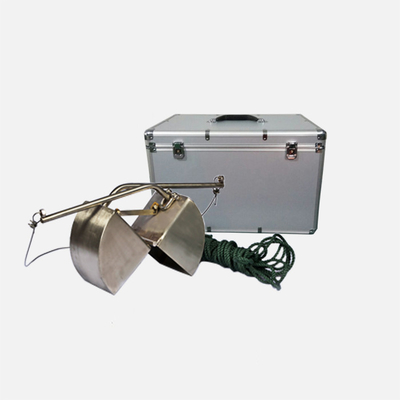

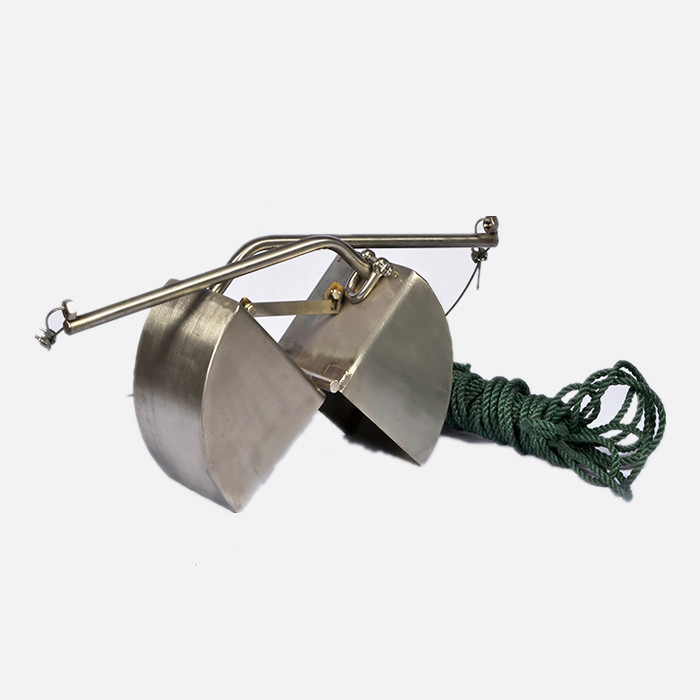

Large Image :  304 Stainless Steel Soil Sampling Instruments , 1-5L Sediment Grab Sampler

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YLK-SC01
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD300-USD450
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T,Paypal, Alibaba Trade, Credit Card
Supply Ability: 500units per month

304 Stainless Steel Soil Sampling Instruments , 1-5L Sediment Grab Sampler

Description
Product Name: Grab Sampler Usage: Mud Collecting
Material: 304 Stainless Steel Sampling Area: 15cm*30cm
Sampling Depth: 0-20m
High Light:

304 Stainless Steel Soil Sampling Instruments

,

1L Soil Sampling Instruments

,

5L sediment grab sampler

Grab Sampler



Product Introduction

The Bottom Sediment Grab Sampler is a kind of laboratory equipment, which is used for collect the mud( sediment/sludge/deposit) samples from the bottom of rivers,lakes,ponds,shallow sea etc.





Applications

Widely used for the sampling of sediments, bottoms, sludge and other substances in lakes, rivers, ponds, shallow seas etc.



Product Specifications

Model YLK-SC01
Sampling depth Grab-style design, sampling depth 0-20 meters (in special cases, the sampling depth can be increased with an extra-length drawstring
Sampled volume per batch 1-5L
Sampling area 15cm×30cm
Material 304 stainless steel



Usage

  1. Determine sampling place.
  2. Stretch grab bucket, put support rob into buckle and pull rope closer, then the grab bucket will stay open condition.
  3. Put the stretched grab bucket into river slowly, release rope while contacting the river bottom, then the support rod will detach with buckle under gravity effect.
  4. Lift rope by strength and the stretched grab bucket will close slowly. Lastly the bottom sediment will be collected inside grab bucket while closing.
