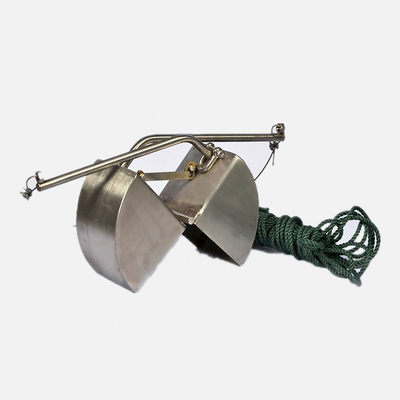

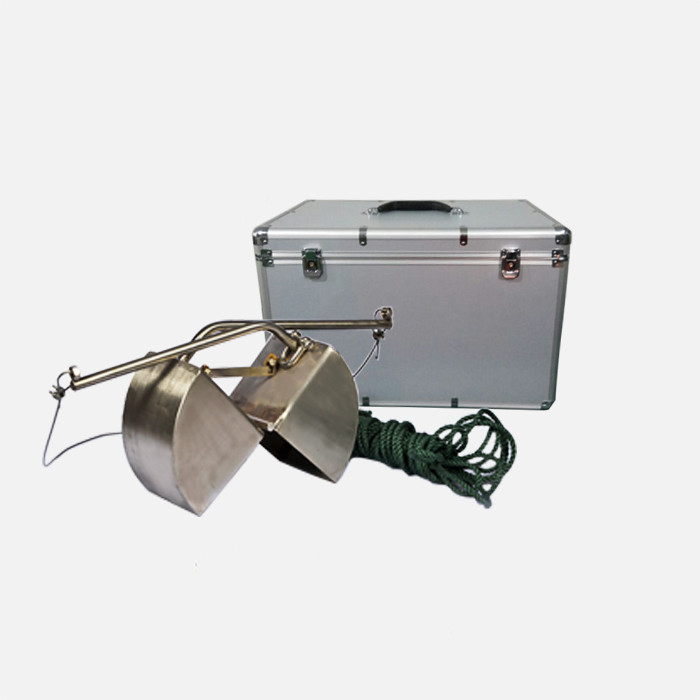

Mud Collecting Soil Sampling Instruments , Sludge Sediment Van Veen Grab Sampler

Mud Collecting Soil Sampling Instruments , Sludge Sediment Van Veen Grab Sampler
Mud Collecting Soil Sampling Instruments , Sludge Sediment Van Veen Grab Sampler Mud Collecting Soil Sampling Instruments , Sludge Sediment Van Veen Grab Sampler

Large Image :  Mud Collecting Soil Sampling Instruments , Sludge Sediment Van Veen Grab Sampler

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YLK-SC01
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD300-USD450
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T,Paypal, Alibaba Trade, Credit Card
Supply Ability: 500units per month

Mud Collecting Soil Sampling Instruments , Sludge Sediment Van Veen Grab Sampler

Description
Product Name: Grab Sampler Usage: Mud Collecting
Material: 304 Stainless Steel Sampling Area: 15cm*30cm
Sampling Depth: 0-20m
High Light:

Mud Collecting Soil Sampling Instruments

,

Sediment van veen grab sampler

,

Sludge van veen grab sampler

Stainless Steel Van Veen Grab Sediment Sampler, Sludge Sediment Grab Sampler



Product Introduction

The “Van Veen Grab” is a bedload sampler, deployed on a rope or winch, depending on the size of the sampler. During the descent to the bottom the two buckets are held in open position by the means of a hook. When the grab hits the bottom the tension on the hook is released and the hook is disengaged. Upon lifting the buckets dig into the bed of the water body and close.





Applications

Widely used for the sampling of sediments, bottoms, sludge and other substances in lakes, rivers, ponds, shallow seas etc.



Product Specifications

Model YLK-SC01
Sampling depth Grab-style design, sampling depth 0-20 meters
Sampled volume per batch 1-5L
Sampling area 15cm×30cm
Material Stainless steel



Usage

  1. Determine sampling place.
  2. Stretch grab bucket, put support rob into buckle and pull rope closer, then the grab bucket will stay open condition.
  3. Put the stretched grab bucket into river slowly, release rope while contacting the river bottom, then the support rod will detach with buckle under gravity effect.
  4. Lift rope by strength and the stretched grab bucket will close slowly. Lastly the bottom sediment will be collected inside grab bucket while closing.
