Product Details:
|
Product Name: | Large Capacity Laboratory Planetary Ball Mill Machine For Sale | Power Supply: | 220V/380V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 0.1um |
Capacity: | 1/3 Of Jar | Noise:: | Less Than 60db |
Highlight: | Laboratory Planetary Ball Mill,20L Capacity Ball Mill Machine,380V Planetary Ball Mill |

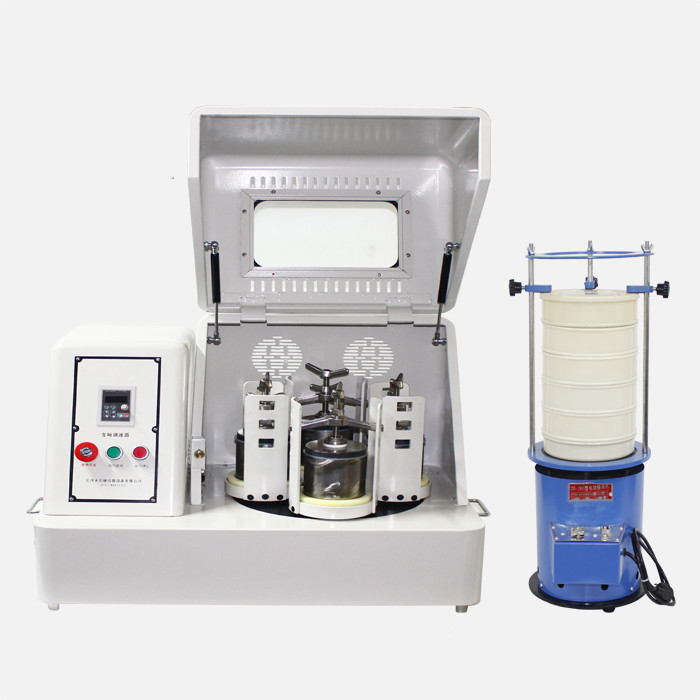

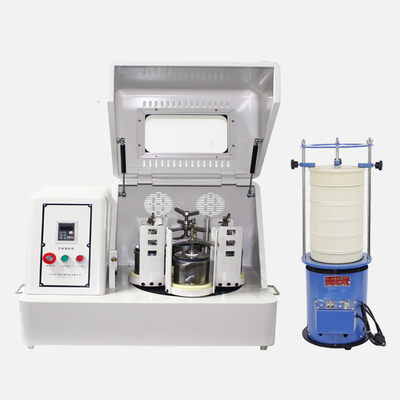

Large Capacity Laboratory Planetary Ball Mill Machine for Sale
Product Introduction
Planetary Mills are ideally suited for fine grinding of hard, medium-hard, soft, brittle, tough and moist materials. The comminution of the material to be ground takes place primarily through the high-energy impact of grinding balls in rotating grinding bowls.
The grinding can be performed dry, in suspension or in inert gas. In addition to comminution, you can use Planetary Mills for mixing and homogenising of emulsions and pastes or for mechanical alloying and activation in materials research.
Applications
Widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on.Zn ferrite and etc.
Product Display
Product Parameters
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
YKM-4L | 1L | 1.3L | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
YKM-8L | 2L | 2.6L | 35-290 | 70-580 | 60db | 1.5 | 150 | 900*600*640 |
YKM-20 | 5L | 6.6L |
25-215 |
50-430 |
60db | 4 | 350 |
1350*780*750 |
YKM-60L | 15L | 20L |
20-180 |
40-360 |
68db |
7.5 | 560 |
1550*950*1000 |
YKM-100L | 25L | 33L |
20-120 |
40-240 |
40-240 |
11 | 850 |
1800*1100*1350 |
Advantages
1. Powerful and quick grinding down to nano range.
2. High speed, large energy, high efficiency, small granularity.
3. Four samples can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result.
5. It has functions of timing power off, self-timing forward and reversal rotating.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
