Product Details:
|
Product Name: | 220V Or 110V High Efficiency 0.4L Vertical Lab Planetary Ball Mill Desktop Type | Power Supply: | 220V/110V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 0.1um |
Capacity: | 1/3 Of Jar | Noise:: | Less Than 60db |
Certification:: | ISO, CE | Item: | Lab Ball Milling Machine |
Highlight: | Table Top Ball Mill 220V,Micro Tabletop Ball Mill Machine,Table Top Ball Mill 0.4L |
Product Introduction
YLK Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.
Working Principle
The Mini planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together
Applications
Mini planetary ball mill is widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

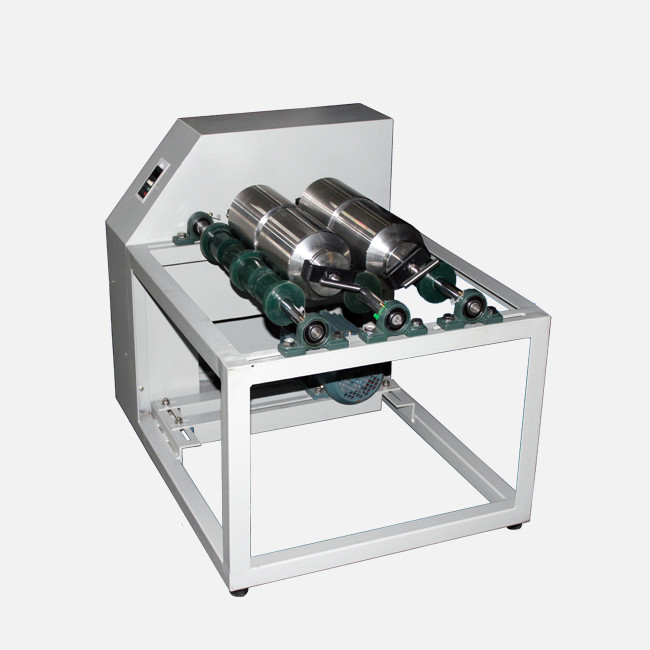

Product Display
Technical Features
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Max Load Capacity | Less than 2/3 of total volume of grinding jars |
Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
Output Granule | Minimum 0.1µm |
Rotational Speed Ratio | 1/2 |
Max.Continuous Operating Time | 72 Hours |
Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
YKM-0.4L | 100ml | 130ml | 45-430 | 90-870 | 58db | 0.25 | 29kg | 530*300*340 |
YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
YKM-2L | 500ml | 660ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
YKM-4L | 1L | 1.3L | 35-340 | 70-680 | 60db | 0.75 | 80kg | 8750*470*590 |
YKM-8L | 2L | 2.6L | 35-290 | 70-580 | 60db | 1.5 | 132 | 880*560*670 |
YKM-12L | 3L | 4L | 35-290 | 70-580 | 60db | 1.5 | 170 | 880*560*670 |
YKM-16 | 4L | 5.3L |
30-225 |
60-520 |
60db | 3 | 203 |
950*600*710 |
Features of 0.4L 110 - 220v Mini Laboratory Ball Mill
1. Patented oil seal mute technology and gear drive core technology(gear running in the oil tank ),noise reduced by 50%,increase service life more than 2 times
2. PLC frequency conversion control
3. With own design for precision gear drive instead of original belt drive,such as belt easy to slip and unstable speed.
4. Suitable for dry/wet/vacuum/protective atmosphere/low temperature/high temperature mill.
5. Ensures the Homogeneity and repeat-ability of the experiment.
6. It can solute the problems for the deposition and sticking of some materials and four samples could be obtained with different sizes in one experiment.
7. Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss.
8. The device is equipped with a safety switch, which can avoid the equipment running after opening the safety cover, and avoid a safety accident;
9. When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.
10. V clip with automatic gear lock, easy to install and disassemble, easy to loosen, safe and reliable, simple and easy to use, delicate design and beautiful shape.
Accessories of Grinding Pots & Balls
