Rotational Ball Milling Laboratory Pulverizer Machine PLC Control 12L

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

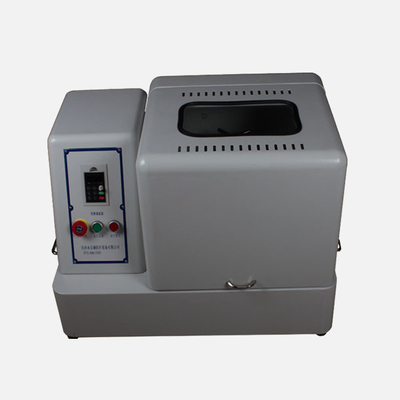

Rotational Ball Milling Laboratory Pulverizer Machine PLC Control 12L

Rotational Ball Milling Laboratory Pulverizer Machine PLC Control 12L
Rotational Ball Milling Laboratory Pulverizer Machine PLC Control 12L

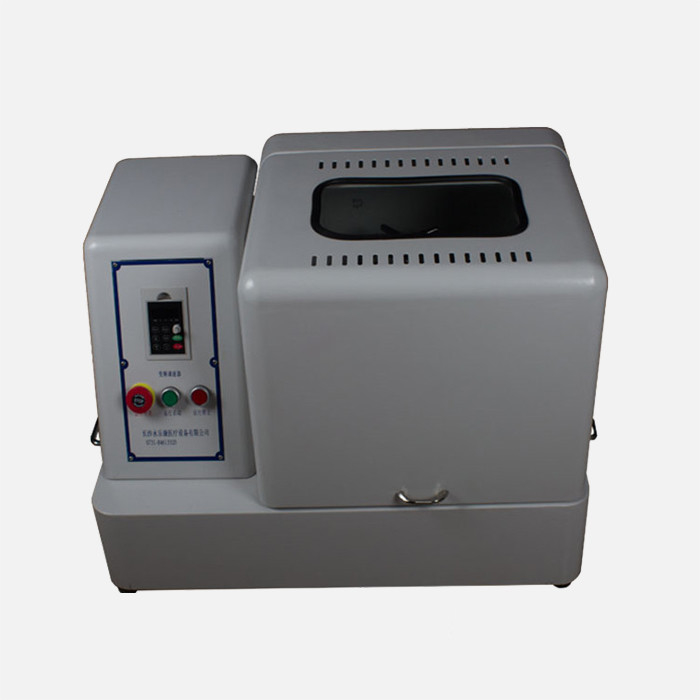

Large Image :  Rotational Ball Milling Laboratory Pulverizer Machine PLC Control 12L

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKM-12L
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

Rotational Ball Milling Laboratory Pulverizer Machine PLC Control 12L

Description
Product Name: 1.5KW 12L Laboratory Rotational Ball Milling Pulverizer Machine PLC Control Power Supply: 110V/220V/380V
Input Size: 3-10mm Output Size: Min. 0.1um
Capacity: 1/3 Of Jar Certification:: ISO, CE
High Light:

PLC Laboratory Pulverizer Machine

,

Rotational Laboratory Pulverizer Machine

,

Rotational Ball Milling Machine 12L

1.5KW 12L Laboratory Rotational Ball Milling Pulverizer Machine PLC Control



Product Introduction

Planetary Mills are ideally suited for fine grinding of hard, medium-hard, soft, brittle, tough and moist materials. The comminution of the material to be ground takes place primarily through the high-energy impact of grinding balls in rotating grinding bowls.
The grinding can be performed dry, in suspension or in inert gas. In addition to comminution, you can use Planetary Mills for mixing and homogenising of emulsions and pastes or for mechanical alloying and activation in materials research.



Working Principle

When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder.



Applications

It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.



Product Display

Rotational Ball Milling Laboratory Pulverizer Machine PLC Control 12L 0



Technical Features

Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Max Load Capacity Less than 2/3 of total volume of grinding jars
Feed Size of Materials Soft and crispy material≤10mm,Other materials≤3mm
Output Granule Minimum 0.1µm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 Hours
Materials of Jar stainless steel.agate,nylon,corundum, zirconia,etc



Product Parameters

Model

Jar Volume

Max.Powder Capacity

Rotation Speed (RPM)

Revolution Speed (RPM)

Max Noise

Power (KW)

Net Weight

Dimension

(mm)

YKM-12L 3L 4L 35-290 70-580 60db 1.5 170 900*600*640
YKM-20 5L 6.6L

25-215

50-430

60db 4 350

1350*780*750

YKM-40 10L 13.3L

20-195

40-390

605db 5.5 420

1350*880*850

YKM-60L 15L 20L

20-180

40-360

68db

7.5 560

1550*950*1000

YKM-100L 25L 33L

20-120

40-240

40-240

11 850

1800*1100*1350



Advantages

1. Powerful and quick grinding down to nano range.
2. Planetary movement principle owns high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.



Accessories of Grinding Pots & Balls

Rotational Ball Milling Laboratory Pulverizer Machine PLC Control 12L 1
