Mini Laboratory Ball Mill Machine 220V 50Hz 0.75KW For Metallurgy Industry

0.75KW Mini Laboratory Ball Mill 220V 50Hz For Ultra Fine Powder Grinding

Overview

Laboratory Ball Mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. YLK planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. YLK planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.

Working Principle

Laboratory Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The machine smashes and blends various kinds of different materials in dry or wet grinding methods. Smallest granularity of output powder can be reached to 0.1μm.

Applications

Laboratory mini ball mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

Features
1. Easy operation.
2. Unique gear with low noise.
3. Vertical planetary structure of the mill pot avoids materials sticking the jar wall and sinking to the jar bottom.

Advantages
1. Stable revolving speed of the gear transmission.
2. High speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter; you may choose ideal rotating speed according to expected,The converter is equipped with      device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.

Technical Features

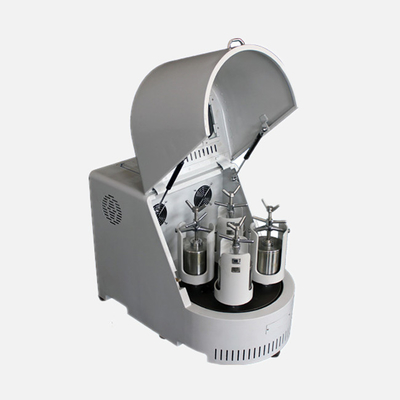

Product Display

Technical Parameters

Accessories of Mill Jars & Balls

304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.
