Product Details:
|
| Product Name: | Cabinet Laboratory Shaker Machine Rotary Agitator For Soil TCLP Test | Material: | Overall Steel Structure With Anti-corrosion Coating |
|---|---|---|---|
| Adapted Container: | 2L PE/ Glass / PTFE Bottle, Pollutant Extractor | Rotate Speed: | 0-60RPM ±1R/MIN |
| Temperature: | ROOM TEMP - 60℃ | Voltage: | 220V/110V |
| High Light: | Laboratory Shaker Machine Agitator,Soil TCLP Laboratory Shaker Machine,Cabinet tclp agitator |
||

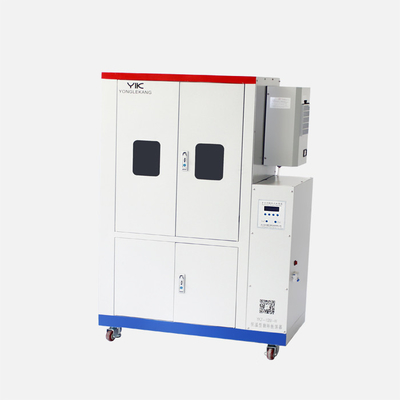

Cabinet Laboratory Shaker Machine Rotary Agitator For Soil TCLP Test
Product Introduction
The toxicity characteristic leaching procedure (TCLP) is a soil sample extraction procedure for chemical analysis, employed to chemically determine if a waste is characteristically hazardous. Hence, TCLP analyses the mobility of both organic and inorganic analytes present in liquid, solid and multiphasic waste.
During TCLP, rotary agitators are required. Rotary agitators are used for continuously ‘agitating’ stored liquids, to prevent the liquids from settling and separating into its various components, assuring a uniform liquid consistency. The rotary agitator is the result of developments from a line of preceding agitators, including the aerating agitator, flotation apparatus and the agitator suction tube combination.
Product Specification
| Vessels loaded | 6 / 8 / 12 pcs 2L bottles (1L bottle available if needed) |
| Bottle type | PE Bottle / PTFE Bottle / Glass Bottle / Zero Headspace Extractor for choose |
| Time Set | Minute/Hour set, 1-24H for alternative, accuracy to minute |
| Rotation Method | Continuous positive rotation , Interval rotation Mode and Multi-segment curve mode settings are available. The rotation speed,rotation time and temperature can be set as per requirements. |
| Machine Material | Overall steel structure with anti-corrosion coating, and stainless steel fixtures |
| Temperature Set | Room temperature to 60℃ adjustable |
| Operation Method | Micro computer controlled, button operated, LCD panel display. |
| Safety Device | Overall sealed 360°overturn rotation, With flip cover electricity insulation device, electricity leakage protection device & overload protection device |
Product Display
Product Parameters
| Model | Bottle Qty | Bottle Volume | Rotation Speed | Power Supply | Temperature | Dimension | Weight |
| YKZ-08IV-H | 8pcs | 2L | 0-60RPM ±1R/MIN | AC 220V | Room TEMP - 60℃ | 1050*520*1575MM | 148KG |
| YKZ-12IV-H | 12pcs | 2L | 0-60RPM ±1R/MIN | AC 220V | Room TEMP - 60℃ | 1050*520*1575MM | 153KG |
Product Advantages
