Product Details:
|
Product Name: | Lab Separatory Funnel Vertical Shaker For Liquid Liquid Extraction Machine Manufacturer | Adapted Container: | 50–2000ml Standard Pyriform Or Ball Type Separating Funnel |
---|---|---|---|
Rotation Speed: | 100-300rpm Adjustable | Shake Method: | Vertical Shake ( Tilt Angle 0-20° Adjustable ) |
Shake Range: | 40mm | Vessel Number: | 4 / 6 / 8 / 10pcs |

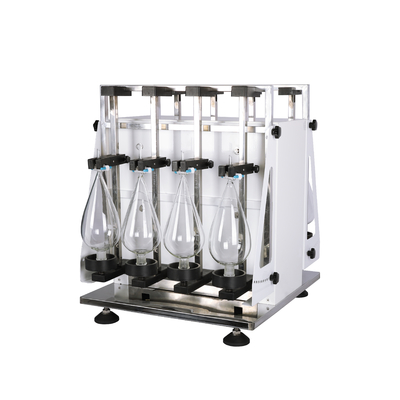

Lab Separatory Funnel Vertical Shaker for Liquid Liquid Extraction Machine Manufacturer
Product Introduction
YLK separatory funnel oscillator (vertical oscillator) can be used for a variety of separatory funnels, which can greatly improve work efficiency and reduce work intensity. It can be used for: extraction operation before environmental analysis, extraction of food, natural oils and fats, extraction of pesticide residues, extraction of harmful substances in soil, extraction of water pollution detection, etc.
Application
Product Specifications
Model | YKD-08 |
Shake Speed | 100-300 T/Min |
Shake Range | 40mm |
Shake Method | Vertical Shake ( tilt angle 0-20° adjustable ) |
Frequency Control | Infinitely variable speed, LCD display |
Time Set Range | Max.15 minutes ( count down applied ) |
Applied Vessel | 50–2000ml standard pyriform or ball type separating funnel |
Vessel Number | 4 / 6 / 8 / 10pcs |
Extraction Efficiency | 95-110% |
Load Rated | Bilateral symmetry 11kg |
Power Supply | 220V, 50/60Hz; 100W |
Dimension(mm) | 535W * 475D * 690H |
Net Weight (kg) | 120kg |

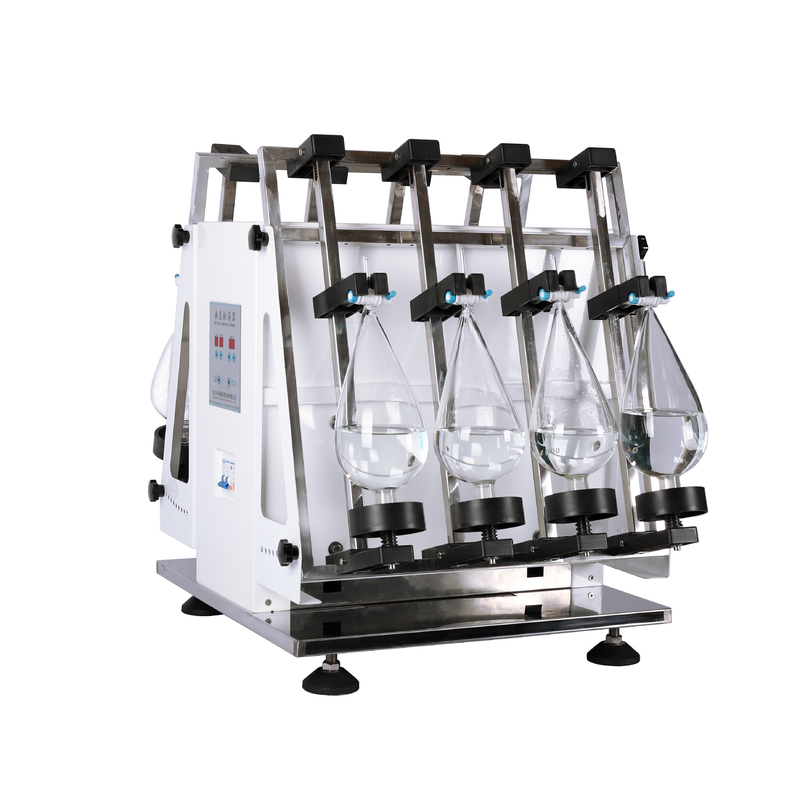

Product Display
Product Advantages
1, Can choose between tilting and vertical oscillation.
2, The sample holder can slide freely up and down, it is simple and convenient to place or remove the sample.
3. Run smoothly when starting or stopping slowly to reduce the impact on the separatory funnel.
4, Using silent DC motor, working noise is less than 55 decibels.
