Product Details:
|
| Product Name: | Laboratory Scale 1400rpm 1L Stirred Ball Mill | Power Supply: | 220V/380V |
|---|---|---|---|
| Input Size: | Soft And Crispy Material≤10mm,Other Materials≤3mm | Output Size: | Min. 0.1um |
| Noise:: | Less Than 60db | Certification:: | ISO, CE |
| High Light: | 1400rpm stirred ball mill,laboratory scale stirred ball mill,1L laboratory scale ball mill |
||

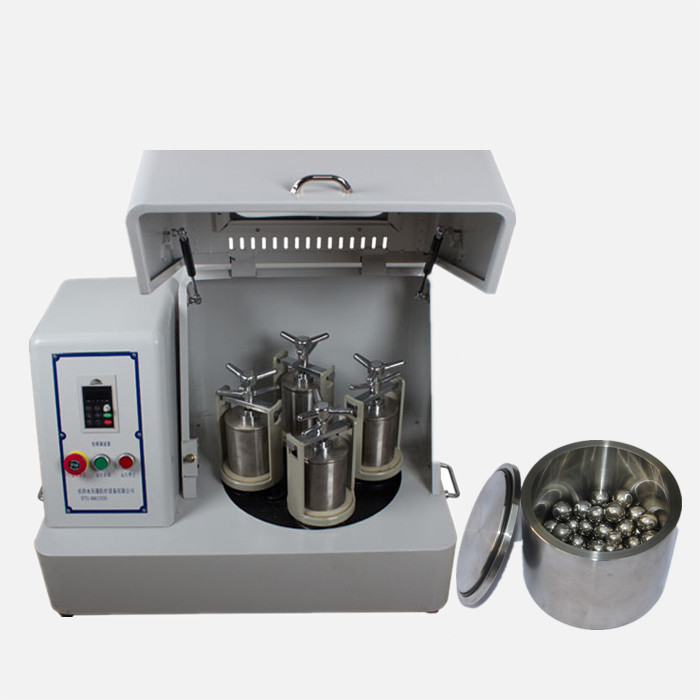

Laboratory Scale 1400rpm 1L Stirred Ball Mill
Product Introduction
YLK Planetary ball mill is a necessary device for samples mixing and fine grinding,The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device used for research and development institute,collages and universities,entire laboratory. The samples could be ground under vacuum state with using the vacuum ball mill jars, wet grind and dry grind.
Working Principle
When the turntable rotates, the jars axis makes planetary movements, the balls and samples inside the jars are impacted strongly in high speed movement, and then samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill.
Applications
It is widely used in geology,mineral,metallurgy,electronic,building material,ceramic,chemical,light industry,medicine,beauty,environment production,tea and so on.
Product Display
Technical Features
| Drive Mode | Gear drive |
| Operation Mode | Two or four grinding tanks working together |
| Max Load Capacity | Less than 2/3 of total volume of grinding jars |
| Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
| Output Granule | Minimum 0.1µm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 Hours |
| Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
|
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
| YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
| YKM-2L | 500ml | 660ml | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
| YKM-4L | 1L | 1.3L | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
Advantages
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle owns high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Accessories of Grinding Pots & Balls
