Mute 2L Herb Powder Laboratory Ball Mill Machine , Vertical Nano Milling Machine

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

Mute 2L Herb Powder Laboratory Ball Mill Machine , Vertical Nano Milling Machine

Mute 2L Herb Powder Laboratory Ball Mill Machine , Vertical Nano Milling Machine
Mute 2L Herb Powder Laboratory Ball Mill Machine , Vertical Nano Milling Machine

Large Image :  Mute 2L Herb Powder Laboratory Ball Mill Machine , Vertical Nano Milling Machine

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKM-2L
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

Mute 2L Herb Powder Laboratory Ball Mill Machine , Vertical Nano Milling Machine

Description
Product Name: Vertical Planetary Ball Mill Power Supply: 220V/380V
Input Size: 3-10mm Output Size: Min. 0.1um
Capacity: 1/3 Of Jar Noise:: Less Than 60db
Certification:: ISO, CE
High Light:

Herb Laboratory Ball Mill Machine

,

Mute 2L Laboratory Ball Mill Machine

,

Laboratory nano milling machine

Vertical Mute 2L Herb Nano Powder Lab Ball Mill



Product Introduction

Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder,  Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.



Working Principle

The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together



Applications

Vertical planetary ball mill is widely applied in many industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material,  zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

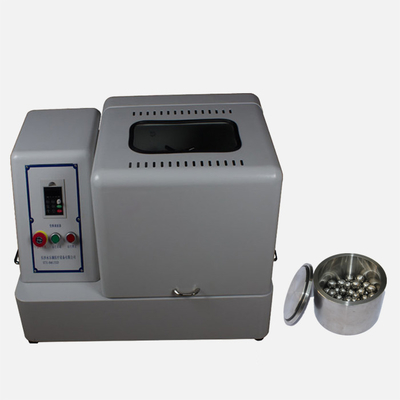

Product Display

Mute 2L Herb Powder Laboratory Ball Mill Machine , Vertical Nano Milling Machine 0



Technical Features

Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Max Load Capacity Less than 2/3 of total volume of grinding jars
Feed Size of Materials Soft and crispy material≤10mm,Other materials≤3mm
Output Granule Minimum 0.1µm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 Hours
Materials of Jar stainless steel.agate,nylon,corundum, zirconia,etc



Product Parameters

Model

Jar Volume

Max.Powder Capacity

Rotation Speed (RPM)

Revolution Speed (RPM)

Max Noise

Power (KW)

Net Weight

Dimension

(mm)

YKM-1L 250ml 330ml 35-340 70-680 60db 0.75 96kg 830*500*580
YKM-2L 500ml 660ml 35-340 70-680 60db 0.75 96kg 830*500*580
YKM-4L 1L 1.3L 35-340 70-680 60db 0.75 96kg 830*500*580
YKM-8L 2L 2.6L 35-290 70-580 60db 1.5 150 900*600*640
YKM-12L 3L 4L 35-290 70-580 60db 1.5 170 900*600*640
YKM-16 4L 5.3L

30-225

60-520

60db 3 330

970*620*680

YKM-20 5L 6.6L

25-215

50-430

60db 4 350

1350*780*750

YKM-40 10L 13.3L

20-195

40-390

605db 5.5 420

1350*880*850

YKM-60L 15L 20L

20-180

40-360

68db

7.5 560

1550*950*1000

YKM-100L 25L 33L

20-120

40-240

40-240

11 850

1800*1100*1350



Accessories of Grinding Pots & Balls

We provides all kinds of mill jars,Stainless Steel Jar, Zirconia Jar, Corundum Jar,Alumina Jar, Nylon Jar, PU Jar,Tungsten Jar and PTFE Jar etc.Further, we also provide Stainless Steel Balls, Zirconia Balls, Alumina Balls, PU Balls, Tungsten Balls accordingly.Normally, Mill Jars and balls of the same material are used. In principle, the mill jars material must be harder than the material to be ground.

Mute 2L Herb Powder Laboratory Ball Mill Machine , Vertical Nano Milling Machine 1
