Product Details:
|
Product Name: | 0.4L Lab Powder Grinding Machine, Nano Powder Making Planetary Ball Mill | Power Supply: | 220V/110V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 0.1um |
Capacity: | 1/3 Of Jar | Noise:: | Less Than 60db |
Certification:: | ISO, CE | ||
Highlight: | 430RPM Powder Laboratory Ball Mill Machine,45RPM Laboratory Ball Mill Machine,nano powder grinding machine |
0.4L Lab powder grinding machine, nano Powder making planetary ball mill
Product Introduction
YLK Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.
Working Principle
The Mini planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill.
Applications
Mini planetary ball mill is widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on.

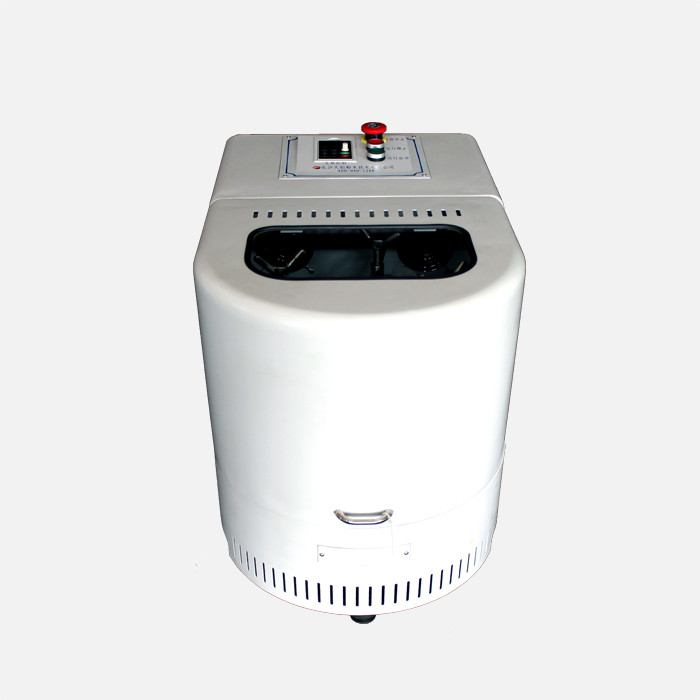

Product Display
Technical Features
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Max Load Capacity | Less than 2/3 of total volume of grinding jars |
Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
Output Granule | Minimum 0.1µm |
Rotational Speed Ratio | 1/2 |
Max.Continuous Operating Time | 72 Hours |
Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
YKM-0.4L | 100ml | 130ml | 45-430 | 90-870 | 58db | 0.25 | 29kg | 530*300*340 |
Accessories of Grinding Pots & Balls
