Laboratory 0.4L Horizontal Ball Mill Machine , 0.75kw Nano Ball Mill

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

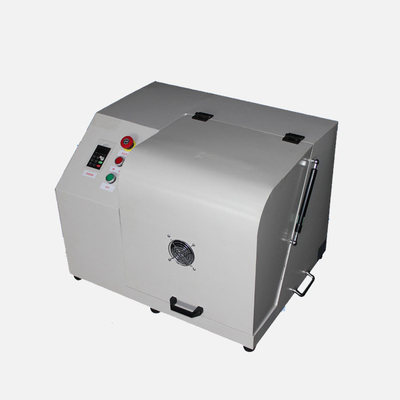

Laboratory 0.4L Horizontal Ball Mill Machine , 0.75kw Nano Ball Mill

Laboratory 0.4L Horizontal Ball Mill Machine , 0.75kw Nano Ball Mill
Laboratory 0.4L Horizontal Ball Mill Machine , 0.75kw Nano Ball Mill

Large Image :  Laboratory 0.4L Horizontal Ball Mill Machine , 0.75kw Nano Ball Mill

Product Details:
Place of Origin: Hunan, China
Brand Name: YLK
Certification: CE ISO
Model Number: YQHM-2L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton + Foam
Delivery Time: 3-7 working days after getting full payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Laboratory 0.4L Horizontal Ball Mill Machine , 0.75kw Nano Ball Mill

Description
Item: Laboratory Ball Mill Machine Drive Mode: Gear Drive
Operation Mode: Two Or Four Grinding Tanks Working Together Rotational Speed Ratio: 1/2
Item: Laboratory Milling Machine
High Light:

0.4L horizontal ball mill

,

Nano Powder horizontal ball mill

,

0.75kw nano ball mill

0.4L Horizontal laboratory ball mill WXQM-0.4 Small Volume For Nano Scale Powder Grinding



Overview

Planetary Laboratory Ball Mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. The ball mill owns features such as small volume, high efficiency, low noise and complete functions. Tencan planetary ball mill is an ideal equipment for R&D institutions, universities, enterprises’ laboratories to get fine powder samples. The ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.



Working Principle
Laboratory Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The machine smashes and blends various kinds of different materials in dry or wet grinding methods. Smallest granularity of output powder can be reached to 0.1μm.



Applications
Horizontal laboratory ball mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on.



Advantages
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four grinding jars can be produced at one time.
4. The machine is controlled by frequency converter, the speed is adjustable.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, and timing according to experimental needs so as to improve efficiency of grinding.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.



Product Display

Laboratory 0.4L Horizontal Ball Mill Machine , 0.75kw Nano Ball Mill 0



Technical Features

Technical Features of HorizontaLaboratory Ball Mill
Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Smallest granule reaches 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 72hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.



Technical Parameters

Model No. Power
(kw)
Voltage
(v)
Dimension
(mm)
Revolution Speed
(rpm)
RotationSpeed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
YQHM-0.4L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YQHM-1L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YQHM-2L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YQHM-4L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YQHM-6L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999



Available Mill Jars:
Stainless steel mill jar,  tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.
Laboratory 0.4L Horizontal Ball Mill Machine , 0.75kw Nano Ball Mill 1
