Product Details:
|
| Product Name: | Lab Automatic Vibrating Screen | Power Supply: | 110V/220V |
|---|---|---|---|
| Application: | Powder Sieving | Material: | Nylon Or 304 Stainless Steel |
| Certification:: | ISO, CE | Layer: | 1-9 Layers |
| Power: | 120W | ||
| High Light: | 120W Lab Vibrating Screen,1400RPM Lab Vibrating Screen,1400RPM Powder Vibrating Screen |
||

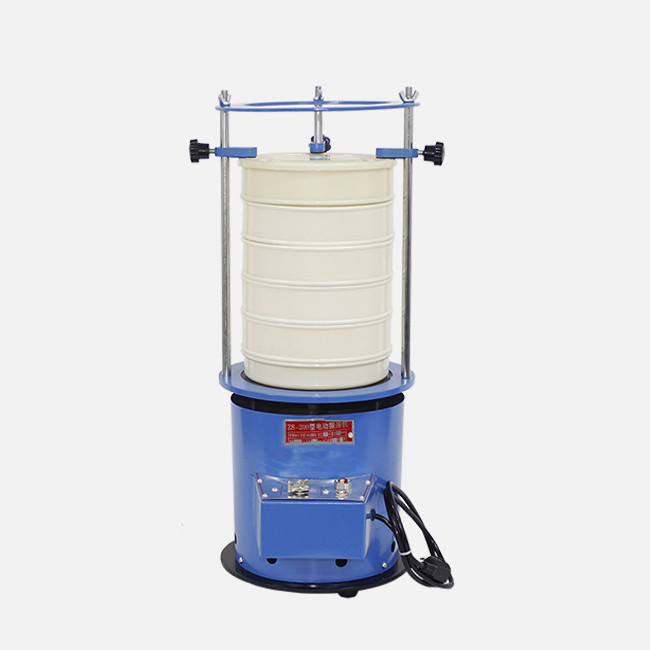

Lab Automatic Vibrating Screen
Product Introduction
YLK Lab Automatic Vibrating Screen is suitable for particles distribution analysis of chemical powder or laboratory solid liquid material. It has features of low noise, high efficiency and precision.This device is made up of milling roller, screen system, feed system and the receiving system. After grinding material, it will smash & sieve the process of media balls and powder. And then reaches granularity,the material would sieve out through the sieve system. Collecting the materials of sieving out by the receiving system. Material continuous feeding through the feed system.
Applications
Widely used in fireworks, electronic materials, magnetic materials,bio-pharmaceutical, ceramic glaze slurry, non-metallic minerals etc.
Product Display
Product Parameters
| Shaking frequency | 1400rpm |
| Shaking mode | Right and left |
| Shaking amplitude | 1-4mm |
| Time setting | 0–60min adjustable |
| Sieve size | Ø20-200 (1-9 layers) |
| Power supply | 120W, 220V, 50Hz |
| Accuracy | 99.90% |
| Dimension | 415*285mm |
| Net Weight | 30kg |
