Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

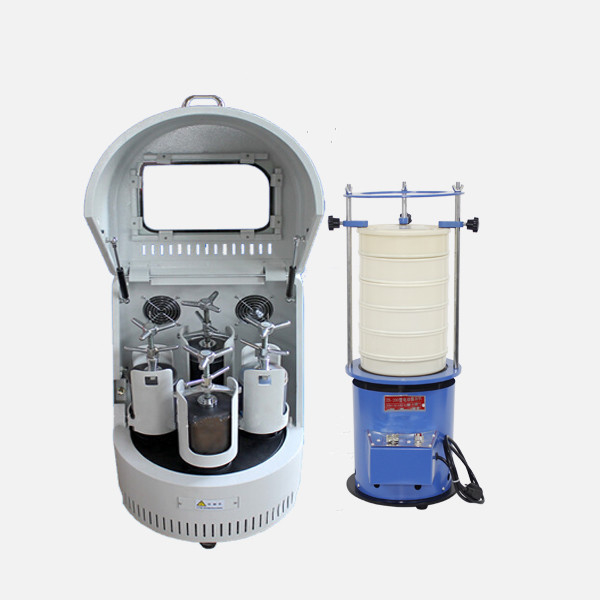

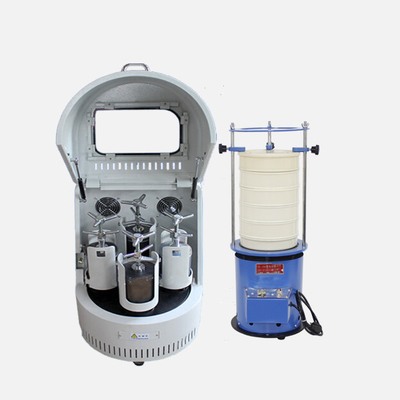

Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding

Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding
Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding

Large Image :  Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding

Product Details:
Place of Origin: Hunan, China
Brand Name: YLK
Certification: CE ISO
Model Number: YKM-0.4L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Delivery Time: 3-7 working days after getting full payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding

Description
Product Name: Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding Power Supply: 110V/220V/380V
Input Size: 3-10mm Output Size: Min. 0.1um
Capacity: 1/3 Of Jar Noise:: Less Than 60db
High Light:

Lab Planetary Ball Mill

,

Vertical Lab Planetary Ball Mill

,

380V Planetary Ball Mill Machine

Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding

Overview

Planetary mill is an indispensable equipment for high-tech material mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production. The product is small in size, complete in function and high in efficiency. It is an ideal equipment for scientific research institutions, universities, and corporate laboratories to obtain microparticle research samples (four samples can be obtained simultaneously for each experiment). Grind the sample under vacuum.



Working Principle

Laboratory Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The machine smashes and blends various kinds of different materials in dry or wet grinding methods.



Applications

Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other sectors, such as: electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, fluorescence Powder, long afterglow luminous powder, rare earth polishing powder, electronic glass powder, fuel cell, ceramic capacitor, zinc oxide varistor, piezoelectric ceramic, nano material, chip ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO Varistor, arrester valve, strontium titanate ring varistor, ceramic filter, dielectric ceramic, piezoelectric transducer, piezoelectric transformer, chip resistor, thick film circuit, pyroelectric potentiometer, alumina ceramic , Production of zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder, nickel-zinc ferrite, manganese-zinc ferrite and other industry products.





Features
1. Easy operation.
2. Unique gear with low noise.
3. Vertical planetary structure of the mill pot avoids materials sticking the jar wall and sinking to the jar bottom.

Advantages

1. Stable revolving speed of the gear transmission.
2. High speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter; you may choose ideal rotating speed according to expected,The converter is equipped with      device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.



Technical Features

Technical Features of Laboratory Mini Ball Mill
Operation Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Smallest granule reaches 0.1 μm
Max. Continuous Operating Time 72hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.



Product Display

Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding 0



Technical Parameters

Parameters of Horizontal Laboratory Ball Mill
Model No. Power
(kw)
Voltage
(v)
Dimension
(mm)
Revolution Speed
(rpm)
RotationSpeed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
YKM-0.4L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YKM-1L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YKM-2L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YKM-4L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YKM-6L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999



Accessories of Mill Jars & Balls

304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.



Small Vertical Lab Planetary Ball Mill Machine For Lab Battery Materials Grinding 1
