Product Details:
|
Product Name: | Good Quality Lab Explosion-proof Cabinet Safety Flammable Chemicals Storage Cabinet | Color: | Yellow.Red, Blue |
---|---|---|---|
Capacity: | 45 Gal/170L | Usage: | Chemical Fire-proof And Explosion-proof Storage |
Material: | Steel, Metal | Application: | Hospital, School, Storage & Closet, Industry |
Size: | 1910 X 1090 X 460mm | ||
Highlight: | Lab Explosionproof Cabinet,Flammable Chemicals Storage Cabinet |

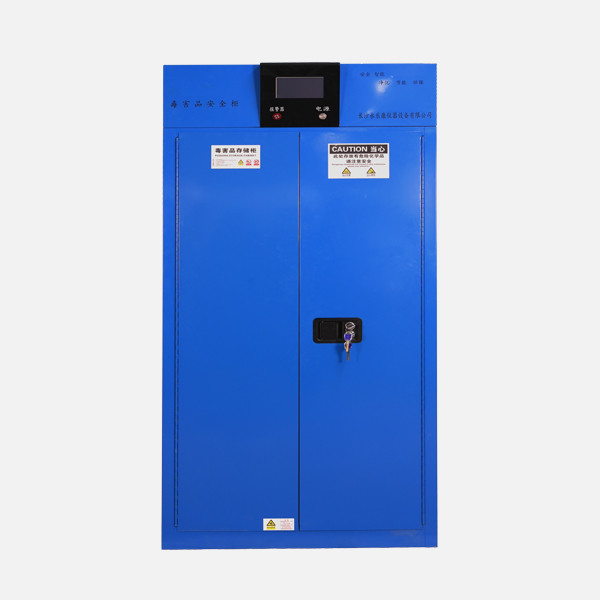

Good quality Lab Explosion-proof Cabinet Safety Flammable Chemicals Storage Cabinet
Product Introduction
1. Combustible Cabinets are for storing paintings, oil and other flammable liquids (high flash point liquid, flash point≥37.8℃) and are mostly applied in places like coating, printing, furniture, automobile and other industries.
2. Designed to meet OSHA and NFPA standards;
3. 1.0mm thickness high-quality steel sheet with anti-corrosive and moisture-proof coating;
4. Double-layer steel sheet welded structure, with a 38mm insulation in the middlefor fire resistance;
5. High quality galvanized steel door hinges to reach 180° door-opening;
6. Three-point door latchmakes the door open and close more flexible and stable;
7. Adjustable galvanized steel shelves and shelf hangers, with leakage-proof function, firm and practical;
8. Fireproof vent, effectively dilute the concentration of volatile substances to prevent fire hazards;
9. Industrial standard 5cm bottom sump containment to prevent liquid spillage;
10. High quality reflective warning label for improving safety of cabinet in a weak-light area;
Product Display
Product Parameters
Purification System Type |
|||
Model | YPD-45B | YPR-45B | YPK-45B |
Function | Toxic Storage | Flammable Storage | Combustible Storage |
Color | Blue | Yellow | Red |
Cabinet Dimension | H1910 x W1090 x D460mm | ||
Plate Dimension | H1000 x W350 x D20mm | ||
Plate Quantity | 3pcs | ||
Fan | Centrifugal fan | ||
Lock Type | Double GA mechanical lock | ||
Display Screen | 7-inch LCD screen | ||
Filter | 1pc primary air filter, 2pcs activated carbon filters | ||
Control System | VOC, temperature and humidity control alarm system | ||
Storage Capacity | 45gallon | ||
Optional | PP Liner + IoT |
Access Instructions for Hazardous Chemicals
1. The cabinet cannot be storaged for a long time.
2. The safety cabinet should be dedicated, and non-hazardous chemicals cannot be storaged in it.
3. The storage container should be in good condition.
4. The volatile corrosive gas should be tightly sealed with corks and placed on the upper layer in order to discharge.
5. It should be storaged in different layer or cabinet according to the chemical properties of oxidizing agent, reducing agent, strong acid, strong base, etc.
6. The hazardous chemicals with different characters should be stored separately.
7. It is strictly forbidden to store toxic cabinet together with inorganic oxidants and strong acids (such as sulfuric acid, nitric acid, etc.).
8. The safety cabinet must be kept by two person, including accessing, using and locking. It should be recorded truthly the access with real-name registration.
9. The hazardous chemicals that is stored for long time and must be scrapped, as well as the waste liquid in the liquid pan at the bottom of cabinet must be cleaned up in timely and destroyed at appointed location according to the hazardous chemical by a particular person. It can not directly poured into the sewer or ordinary trash cans.
