Product Details:
|
| Product Name: | Fireproof Chemical Safety Acid Storage Cabinet | Color: | Yellow.Red, Blue |
|---|---|---|---|
| Capacity: | 45 Gal/170L | Usage: | Chemical Fire-proof And Explosion-proof Storage |
| Material: | Steel, Metal | Application: | Hospital, School, Storage & Closet, Industry |
| Size: | 1910 X 1090 X 460mm | ||
| Highlight: | Fireproof Acid Storage Cabinet,Microcomputer Control Acid Storage Cabinet,Microcomputer Chemical Safety Cabinet |
||

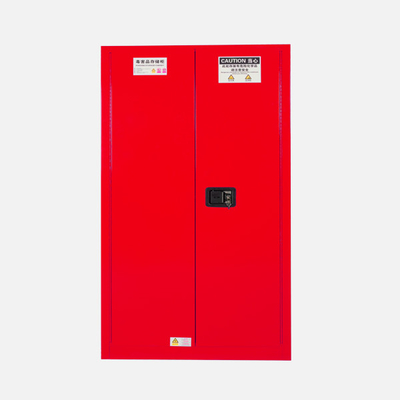

Fireproof Chemical Safety Acid Storage Cabinet
Product Introduction
YLK chemical safety cabinet is made of high-quality cold-rolled steel plate, and the cabinet is equipped with a microcomputer control system to collect and process unorganized volatile gases. The appearance of the product is affixed with a standard warning label, which meets the national standard requirements. It can be optional equipped with an IoT remote control module to realize remote query and monitoring functions. It owns the functions of intelligent remote control,exhaust gas purification, anti-corrosion and fire prevention.
Applications
Product Display
Product Parameters
|
Purification System Type |
|||
| Model | YPD-45B | YPR-45B | YPK-45B |
| Function | Toxic Storage | Flammable Storage | Combustible Storage |
| Color | Blue | Yellow | Red |
| Cabinet Dimension | H1910 x W1090 x D460mm | ||
| Plate Dimension | H1000 x W350 x D20mm | ||
| Plate Quantity | 3pcs | ||
| Fan | Centrifugal fan | ||
| Lock Type | Double GA mechanical lock | ||
| Display Screen | 7-inch LCD screen | ||
| Filter | 1pc primary air filter, 2pcs activated carbon filters | ||
| Control System | VOC, temperature and humidity control alarm system | ||
| Storage Capacity | 45gallon | ||
| Optional | PP Liner + IoT | ||
| Normal Type | |||
| Model | YPD-45A | YPR-45A | YPK-45A |
| Function | Toxic Storage | Flammable Storage | Combustible Storage |
| Color | Blue | Yellow | Red |
| Cabinet Dimension | H1650 x W1090 x D460mm | ||
| Plate Dimension | H1000 x W350 x D20mm | ||
| Plate Quantity | 3pcs | ||
| Lock Type | Double GA mechanical lock | ||
| Storage Capacity | 45gallon | ||
| Optional | PP Liner | ||
Features
1. Two-layer anti-fire steel plate with 38mm between two steel plates for insulation.
2. The door has two keys and is available to use padlock which realize safe management of double-locked with two key holders.
3. Specific warning labels for different no liquid overflow.
4. Specific warning labels for different kinds of safety storage cabinet.
5. Installed with double air vents which are set with anti-fire devices.
6. Adjustable anti-leakage shelves.
Access Instructions for Hazardous Chemicals
1. The safety cabinet should be dedicated, and non-hazardous chemicals cannot be storaged in it.
2. The storage container should be in good condition.
3. The volatile corrosive gas should be tightly sealed with corks and placed on the upper layer in order to discharge.
4. It should be storaged in different layer or cabinet according to the chemical properties of oxidizing agent, reducing agent, strong acid, strong base, etc.
5. The hazardous chemicals with different characters should be stored separately.
6. It is strictly forbidden to store toxic cabinet together with inorganic oxidants and strong acids (such as sulfuric acid, nitric acid, etc.).
7. The safety cabinet must be kept by two person, including accessing, using and locking. It should be recorded truthly the access with real-name registration.
8. The hazardous chemicals that is stored for long time and must be scrapped, as well as the waste liquid in the liquid pan at the bottom of cabinet must be cleaned up in timely and destroyed at appointed location according to the hazardous chemical by a particular person. It can not directly poured into the sewer or ordinary trash cans.
