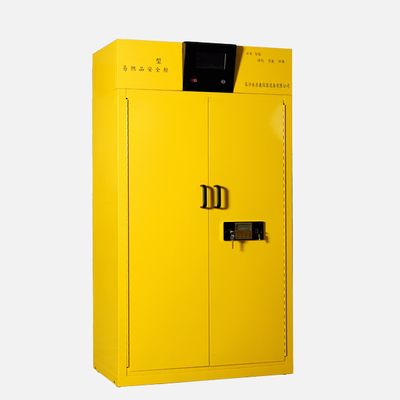

YLK Chemical Safety Storage Cabinet Flammable Electrostatically Sprayed

YLK Chemical Safety Storage Cabinet Flammable Electrostatically Sprayed
YLK Chemical Safety Storage Cabinet Flammable Electrostatically Sprayed

Large Image :  YLK Chemical Safety Storage Cabinet Flammable Electrostatically Sprayed

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YPD-45B,YPR-45B, YPK-45B
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1000-USD2000
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 500units/month

YLK Chemical Safety Storage Cabinet Flammable Electrostatically Sprayed

Description
Product Name: YLK Safety Storage Cabinet Flammable Chemical Safety Storage Cabinet Color: Yellow.Red, Blue
Capacity: 45 Gal/170L Usage: Chemical Fire-proof And Explosion-proof Storage
Material: Steel, Metal Application: Hospital, School, Storage & Closet, Industry
Size: 1910 X 1090 X 460mm
High Light:

Flammable Chemical Safety Storage Cabinet

,

Electrostatically Sprayed Chemical Safety Cabinet

YLK Safety Storage Cabinet Flammable Chemical Safety Storage Cabinet



Product Introduction

YLK chemical safety cabinet is made of high-quality cold-rolled steel plate, and the whole body is electrostatically sprayed with resin. An anti-leakage tank is installed in the cabinet, and an electrostatic grounding wire is provided to prevent the corrosion and explosion of the cabinet caused by liquid and static electricity. The cabinet is equipped with a microcomputer control system to collect and process unorganized volatile gases. The appearance of the product is affixed with a standard warning label, which meets the national standard requirements. It can be optional equipped with an IoT remote control module to realize remote query and monitoring functions. It owns the functions of intelligent remote control,exhaust gas purification, anti-corrosion and fire prevention.



Applications

Yellow Cabinet:It is used for storing various flammable items, which the flashing point is below 45°C.For example: gasoline, alcohol, kerosene, formaldehyde, ethanol, etc.
Red Cabinet:It is used for storing various combustible items, which the flashing point is above 45°C.For example: diesel oil, engine oil, lubricating oil, tung oil, etc.
Blue Cabinet:It is used for storing all kinds of weak corrosive items or weak acids and bases.For example: acetic acid, carbonic acid, phosphoric acid, silicic acid, etc.



Product Display



YLK Chemical Safety Storage Cabinet Flammable Electrostatically Sprayed 0YLK Chemical Safety Storage Cabinet Flammable Electrostatically Sprayed 1YLK Chemical Safety Storage Cabinet Flammable Electrostatically Sprayed 2

Product Parameters

Purification System Type

Model YPD-45B YPR-45B YPK-45B
Function Toxic Storage Flammable Storage Combustible Storage
Color Blue Yellow Red
Cabinet Dimension H1910 x W1090 x D460mm
Plate Dimension H1000 x W350 x D20mm
Plate Quantity 3pcs
Fan Centrifugal fan
Lock Type Double GA mechanical lock
Display Screen 7-inch LCD screen
Filter 1pc primary air filter, 2pcs activated carbon filters
Control System VOC, temperature and humidity control alarm system
Storage Capacity 45gallon
Optional PP Liner + IoT





Features

1. Two-layer anti-fire steel plate with 38mm between two steel plates for insulation.
2.  Main body material: 1.0mm steel plate panted with epoxy resin.
3. Safety:Three-linkage lock. The door has two keys and is available to use padlock which realize safe management of double-locked with two key holders.
4. 50mm height anti-leakage liquid tank ensures no liquid overflow.
5. Specific warning labels for different no liquid overflow.
6. Specific warning labels for different kinds of safety storage cabinet.
7. Installed with double air vents which are set with anti-fire devices.
8. Adjustable anti-leakage shelves.
9.An electrostatic grounded conductive port for easy connection to an electrostatic ground wire.
