Product Details:
|
Product Name: | Vibration Lab Ball Mill 1 - 5L Large Capacity Of 80% Jar Volume & Water Jacket | Power Supply: | 110V/220V/380V |
---|---|---|---|
Input Size: | ≤5mm | Output Size: | Min. 1um |
Capacity: | 1/2 Of Jar | Certification:: | ISO, CE |
Highlight: | Calcium Carbide Vibration Ball Mill,5L Lab Vibration Ball Mill,1L Lab Scale Ball Mill |
Vibration Lab Ball Mill 1 - 5L Large Capacity of 80% Jar Volume & Water Jacket
Product Introduction
The vibratory ball mill is a new type of powder grinding machine. It include single jar, double jars and three jars for choose. It is simple and convenient to use, It can be used for wet and dry grinding.
Working Principle
When the machine is started, the motor-driven vibration generator generates continuous vibration, which makes the cylinder amplitude small and continuous high-frequency movement. Due to the rotation and relative motion of the grinding media, the material in the cylinder is often crushed, peeled and ground into a uniform powder.
Applications
The machine is widely used in ceramics, chemicals, powder metal, tungsten, calcium carbide, magnetic materials and high-frequency ceramic materials etc.

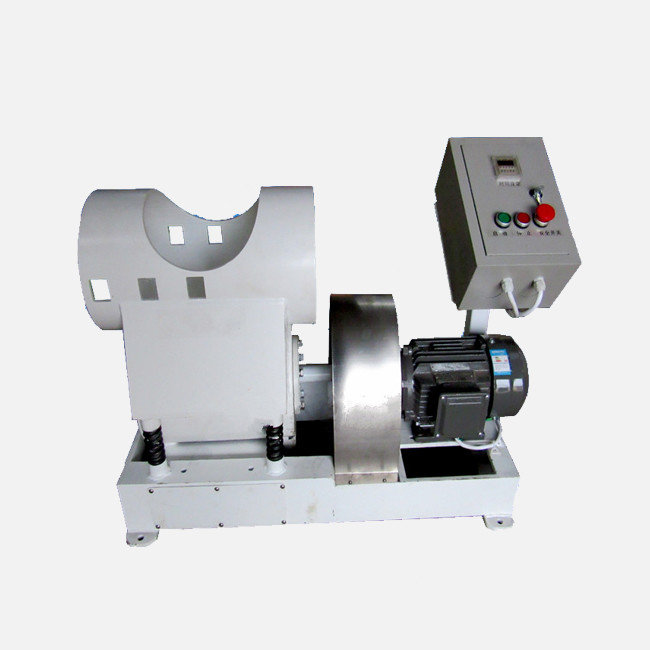

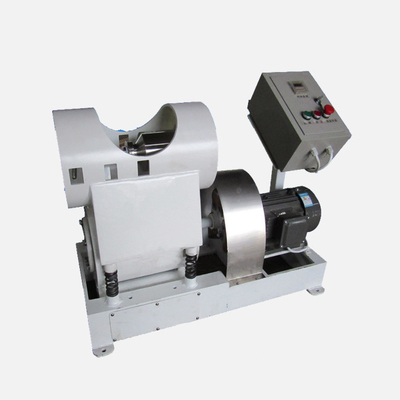

Product Display
Technical Features
Product Parameters
Model |
Jar Volume (L) |
Load Capacity(L) |
Motor Power (KW) |
Feed Size (mm) |
Output Size (μm) |
Power Supply |
Type |
YKV-1L | 1 | 0.5 | 1.1KW | ≤5 | ≤1 | 380V | Lab |
YKV-5L | 5 | 2.5 | 1.1KW | ≤5 | ≤1 | 380V | Lab |
YKV-10L | 10 | 5 | 1.5KW | ≤10 | ≤1 | 380V | Lab |
YKV-15L | 15 | 7.5 | 1.5KW | ≤10 | ≤1 | 380V | Light |
YKV-20L | 20 | 10 | 1.5KW | ≤10 | ≤1 | 380V | Light |
YKV-50L | 50 | 25 | 3KW | ≤≤10 | ≤1 | 380V | Large |
YKV-100L | 100 | 50 | 4KW | ≤≤10 | ≤1 | 380V | Large |
Materials of Jars(1-20L): Stainless steel, agate, nylon, corundum, zirconia, PTFE. | |||||||
Materials of Jar(30-200L): Carbon steel, stainless steel. Optional liners have nylon, PU, PTFE, corundum. |
Accessories of Grinding Pots & Balls
