Multiple Work Positions Lab Ball Mill For Intermittent / Continuous Grinding

Multiple Work Positions Lab Ball Mill For Intermittent / Continuous Grinding
Multiple Work Positions Lab Ball Mill For Intermittent / Continuous Grinding Multiple Work Positions Lab Ball Mill For Intermittent / Continuous Grinding

Large Image :  Multiple Work Positions Lab Ball Mill For Intermittent / Continuous Grinding

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKQ-2-5
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

Multiple Work Positions Lab Ball Mill For Intermittent / Continuous Grinding

Description
Product Name: Multiple Work Positions Rolling Jar Lab Scale Ball Mill For Intermittent / Continuous Grinding Power Supply: 220V/110V
Input Size: 3-10mm Output Size: Min. 15um
Capacity: 1/3 Of Jar Noise:: Less Than 60db
Certification:: ISO, CE
High Light:

Multiple Work Positions Lab Ball Mill

,

Lab Ball Mill For Intermittent Grinding

,

Laboratory Ball Mill For Continuous Grinding

Multiple Work Positions Rolling Jar Lab Scale Ball Mill for Intermittent / Continuous Grinding





Product Introduction

Lab jar mill is a kind of samples ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions. It is widely applied in electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc.It can mill the materials from 10mm maximum into 200-1000mesh.



Working Principle

When mill works, the grinding media and the materials inside the tank are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.



Applications

It is widely applied in electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc.

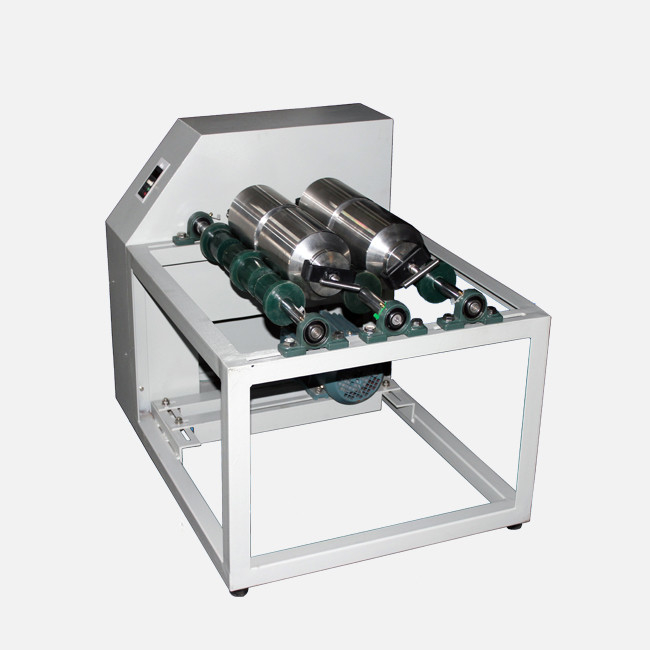

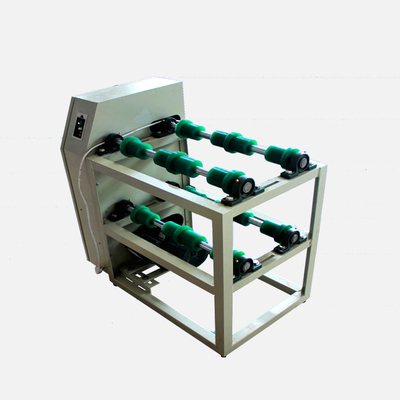

Product Display

Multiple Work Positions Lab Ball Mill For Intermittent / Continuous Grinding 0



Product Parameters

Category Model No.

Samples Volume (L)

Dimension /Net Weight

Power Supply

Rotate Speed

(RPM)

Length of Roller

(MM)

Max Load

Per Jar

(KG)

2 work station YKQ-2-5L 3.3L 890*440*685mm/59kg 0.75KW/220V 50-410 609 35
YKQ-2-10L 6.7L 1040*550*690mm/80kg 1.5KW/220V 40-340 762 80
YKQ-2-15L 10L 1040*550*690mm/80kg 1.5KW/220V 40-340 762 80
4 work station YKQ-4-5L 6.7L 890*660*690mm/70kg 0.75KW/220V 50-410 609 35
YKQ-4-5(Double Layers) 6.7L 890*470*870mm/92kg 0.75KW/220V 50-470 609 35
YKQ-4-15 20L 1040*800*690mm/95kg 1.5KW/220V 40-340 762 80
8 work station YKQ-8-5 14L 890*660*960mm/106kg 1.5KW/220V 50-410 609 35
YKQ-8-15 40L 1040*800*960mm/152kg 2.2KW/380V 40-365 762 80



Machine Characteristics

  1. Compact Structure; Easy to operate;
  2. Hign efficient working; and uniform granularity;
  3. Applied to different size jars by adjusting the movable axises;
  4. Convenient to exchange jars, applied for wet/dry mill;
  5. Timing can be set as per users’ requirements;
  6. Several kinds of samples materials can be ground together per time.



Accessories of Grinding Pots & Balls

Multiple Work Positions Lab Ball Mill For Intermittent / Continuous Grinding 1
