Product Details:
|
| Product Name: | 0.4L 0.25KW Frequency Control Ball Milling Machine | Power Supply: | 220V/110V |
|---|---|---|---|
| Input Size: | 3-10mm | Output Size: | Min. 0.1um |
| Capacity: | 1/3 Of Jar | Noise:: | Less Than 60db |
| Certification:: | ISO, CE | ||
| Highlight: | 0.4L Lab Ball Milling Machine,0.25KW Lab Ball Milling Machine,0.4L Lab Bead Mill |
||
0.4L 0.25KW Frequency Control Ball Milling Machine
Product Introduction
Planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.
Working Principle
The Mini planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder.
Applications
Mini planetary ball mill is widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst and etc.

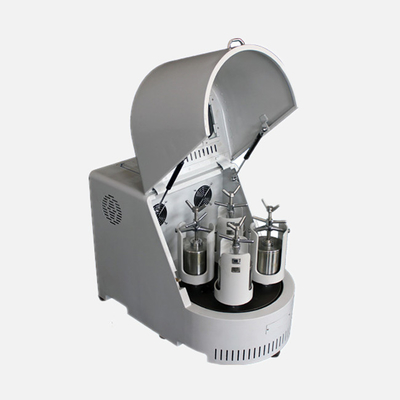

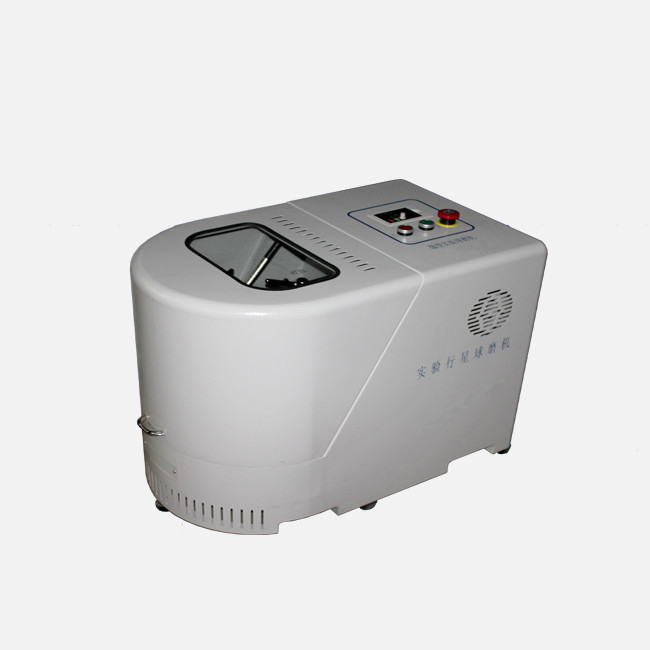

Product Display
Technical Features
| Drive Mode | Gear drive |
| Operation Mode | Two or four grinding tanks working together |
| Max Load Capacity | Less than 2/3 of total volume of grinding jars |
| Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
| Output Granule | Minimum 0.1µm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 Hours |
| Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
|
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
| YKM-0.4L | 100ml | 130ml | 45-430 | 90-870 | 58db | 0.25 | 29kg | 530*300*340 |
| YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
| YKM-2L | 500ml | 660ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
| YKM-4L | 1L | 1.3L | 35-340 | 70-680 | 60db | 0.75 | 80kg | 8750*470*590 |
| YKM-8L | 2L | 2.6L | 35-290 | 70-580 | 60db | 1.5 | 132 | 880*560*670 |
Advantages
1. Stable revolving speed .
2. Planetary movement principle owns high speed, large energy, high efficiency, small granularity.
3. Four powder samples can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Accessories of Grinding Pots & Balls
