Product Details:
|
Product Name: | 4L 670rpm Soil Powder Mini Ball Mill With Agate Grinding Jar | Power Supply: | 220V/110V/380V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 0.1um |
Capacity: | 1/3 Of Jar | Noise:: | Less Than 60db |
Certification:: | ISO, CE | ||
Highlight: | 670rpm Laboratory Ball Mill Machine,Agate Laboratory Ball Mill Machine,4L mini ball mill machine |

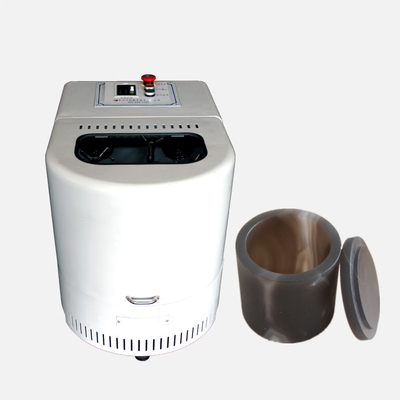

4L 670rpm Soil Powder Mini Ball Mill With Agate Grinding Jar
Product Introduction
YLK Vertical planetary ball mill may be used for mixing, homogenizing, fine grinding, mechanical alloying, cell disruption, small volume high-tech material production and even colloidal grinding. They are the ideal wet/dry/vacuum milling tools for acquiring research samples with high efficiency and low noise.
Working Principle
planetary ball mills have four grinding stations arranged on the "Sun Wheel" of the planetary ball mill. When the Sun Wheel rotates, the grinding balls inside the jars are subject to superimposed rotational movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder.
Applications
Widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on.
Product Display
Technical Features
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Max Load Capacity | Less than 2/3 of total volume of grinding jars |
Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
Output Granule | Minimum 0.1µm |
Rotational Speed Ratio | 1/2 |
Max.Continuous Operating Time | 72 Hours |
Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
YKM-0.4L | 100ml | 130ml | 45-430 | 90-870 | 58db | 0.25 | 29kg | 530*300*340 |
YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
YKM-4L | 1L | 1.3L | 35-340 | 70-680 | 60db | 0.75 | 80kg | 8750*470*590 |
YKM-8L | 2L | 2.6L | 35-290 | 70-580 | 60db | 1.5 | 132 | 880*560*670 |
YKM-16 | 4L | 5.3L |
30-225 |
60-520 |
60db | 3 | 203 |
950*600*710 |
Features
1. High uniformity and excellent repeatability
2. Fast rotational speed, high efficiency and fine granularity
3. Four samples with different sizes and materials in one experiment
4. Leak-proof jars for wet grinding for purchase
5. Large range of materials available for grinding media
6. Gear-drive offers an effective solutions to problems caused by belt driving, such as belt creep and belt abrasion
7. Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation
Accessories of Grinding Pots & Balls
We provides all kinds of mill jars,Stainless Steel Jar, Zirconia Jar, Corundum Jar,Alumina Jar, Nylon Jar, PU Jar,Tungsten Jar and PTFE Jar etc.Further, we also provide Stainless Steel Balls, Zirconia Balls, Alumina Balls, PU Balls, Tungsten Balls accordingly.Normally, Mill Jars and balls of the same material are used. In principle, the mill jars material must be harder than the material to be ground.
