Product Details:
|
Product Name: | 20L Vertical Planetary Laboratory Ball Mill Machine Alumina Ceramics Use | Power Supply: | 110V/220V/380V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 0.1um |
Capacity: | 1/3 Of Jar | Noise:: | Less Than 60db |
Highlight: | 4KW Laboratory Ball Mill Machine,alumina ceramics Laboratory Ball Mill Machine,20L planetary mill |

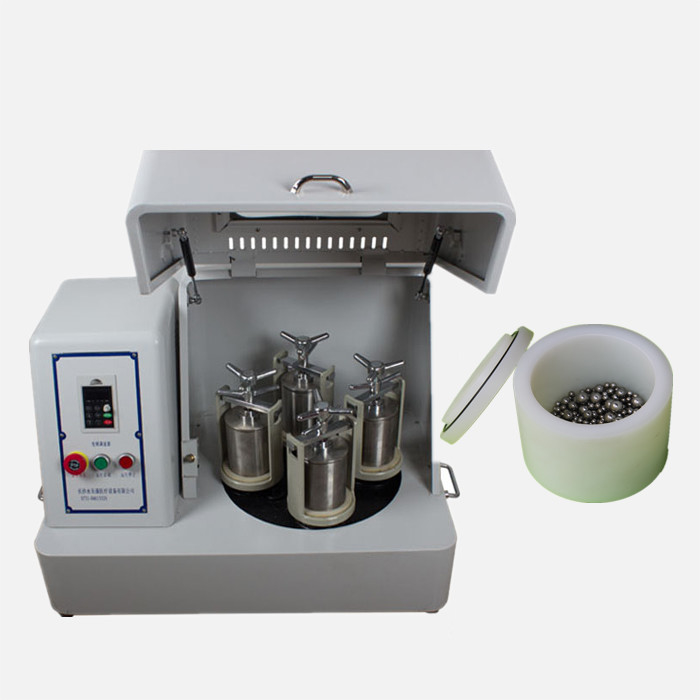

20L Vertical Planetary Ball Mill
Product Introduction
Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features.
Working Principle
The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes the planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high-speed movement.
Applications
The product is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics,Chemical Engineering, Light Industry Medicine, Environmental Protection etc. It's widely used in research institutes, universities, enterprise laboratories and small batch producing manufacturer.
Product Display
Technical Features
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Max Load Capacity | Less than 2/3 of total volume of grinding jars |
Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
Output Granule | Minimum 0.1µm |
Rotational Speed Ratio | 1/2 |
Max.Continuous Operating Time | 72 Hours |
Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
YKM-2L | 500ml | 660ml | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
YKM-4L | 1L | 1.3L | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
YKM-8L | 2L | 2.6L | 35-290 | 70-580 | 60db | 1.5 | 150 | 900*600*640 |
YKM-12L | 3L | 4L | 35-290 | 70-580 | 60db | 1.5 | 170 | 900*600*640 |
YKM-16 | 4L | 5.3L |
30-225 |
60-520 |
60db | 3 | 330 |
970*620*680 |
YKM-20 | 5L | 6.6L |
25-215 |
50-430 |
60db | 4 | 350 |
1350*780*750 |
YKM-40 | 10L | 13.3L |
20-195 |
40-390 |
605db | 5.5 | 420 |
1350*880*850 |
YKM-60L | 15L | 20L |
20-180 |
40-360 |
68db |
7.5 | 560 |
1550*950*1000 |
YKM-100L | 25L | 33L |
20-120 |
40-240 |
40-240 |
11 | 850 |
1800*1100*1350 |
Advantages
Accessories of Grinding Pots & Balls
