8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db

8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db
8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db

Large Image :  8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKM-10L
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db

Description
Product Name: Vertical Planetary Ball Mill Power Supply: 220V/380V
Input Size: 3-10mm Output Size: Min. 0.1um
Capacity: 1/3 Of Jar Noise:: Less Than 60db
Certification:: ISO, CE
Highlight:

8L Planetary Laboratory Ball Mill Machine

,

60db Laboratory Ball Mill Machine

,

zinc oxide powder milling machine

8L laboratory ball mill Driven By Special Gear With Lower Noise For Powder Milling



Product Introduction

YLK Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.



Working Principle

The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together



Applications



Vertical planetary ball mill is widely applied in many industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.



Product Display

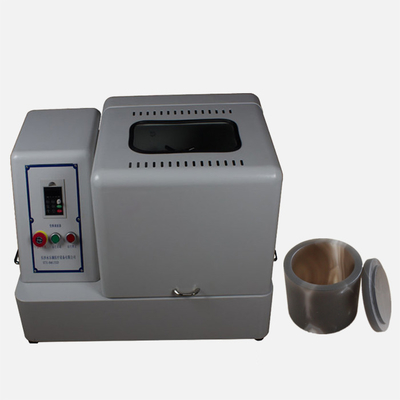

8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db 0



Technical Features

Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Max Load Capacity Less than 2/3 of total volume of grinding jars
Feed Size of Materials Soft and crispy material≤10mm,Other materials≤3mm
Output Granule Minimum 0.1µm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 Hours
Materials of Jar stainless steel.agate,nylon,corundum, zirconia,etc



Product Parameters

Model

Jar Volume

Max.Powder Capacity

Rotation Speed (RPM)

Revolution Speed (RPM)

Max Noise

Power (KW)

Net Weight

Dimension

(mm)

YKM-8L 2L 2.6L 35-290 70-580 60db 1.5 150 900*600*640
YKM-12L 3L 4L 35-290 70-580 60db 1.5 170 900*600*640
YKM-16 4L 5.3L

30-225

60-520

60db 3 330

970*620*680

YKM-20 5L 6.6L

25-215

50-430

60db 4 350

1350*780*750

YKM-40 10L 13.3L

20-195

40-390

605db 5.5 420

1350*880*850

YKM-60L 15L 20L

20-180

40-360

68db

7.5 560

1550*950*1000

YKM-100L 25L 33L

20-120

40-240

40-240

11 850

1800*1100*1350



Accessories of Grinding Pots & Balls

8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db 1
