Product Details:
|
Product Name: | 12L Laboratory Ball Mill For Super Fine Powder Grinding Without Dead Corner | Power Supply: | 220V/380V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 0.1um |
Capacity: | 1/3 Of Jar | Noise:: | Less Than 60db |
Certification:: | ISO, CE | Keyword: | Ball Mill Machine For Powder Grinding |
Highlight: | 12L ball mill grinding machine,3mm ball mill grinding machine,Fine Powder rolling ball mill |
12L Laboratory Ball Mill For Super Fine Powder Grinding Without Dead Corner
Product Introduction
YLK Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.
Working Principle
The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together
Applications
Vertical planetary ball mill is widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst and etc.

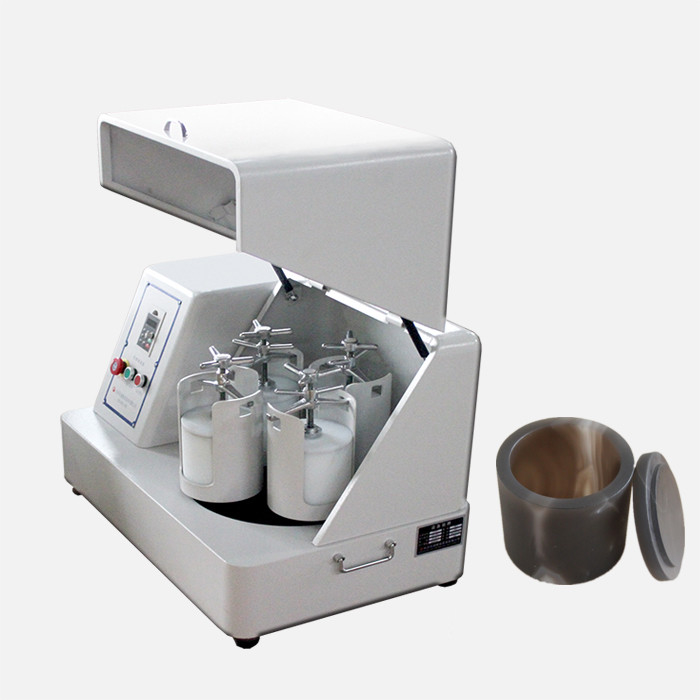

Product Display
Technical Features
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Max Load Capacity | Less than 2/3 of total volume of grinding jars |
Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
Output Granule | Minimum 0.1µm |
Rotational Speed Ratio | 1/2 |
Max.Continuous Operating Time | 72 Hours |
Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
YKM-12L | 3L | 4L | 35-290 | 70-580 | 60db | 1.5 | 170 | 900*600*640 |
YKM-16 | 4L | 5.3L |
30-225 |
60-520 |
60db | 3 | 330 |
970*620*680 |
YKM-20 | 5L | 6.6L |
25-215 |
50-430 |
60db | 4 | 350 |
1350*780*750 |
YKM-40 | 10L | 13.3L |
20-195 |
40-390 |
605db | 5.5 | 420 |
1350*880*850 |
YKM-60L | 15L | 20L |
20-180 |
40-360 |
68db |
7.5 | 560 |
1550*950*1000 |
YKM-100L | 25L | 33L |
20-120 |
40-240 |
40-240 |
11 | 850 |
1800*1100*1350 |
Advantages
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle owns high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Accessories of Grinding Pots & Balls
