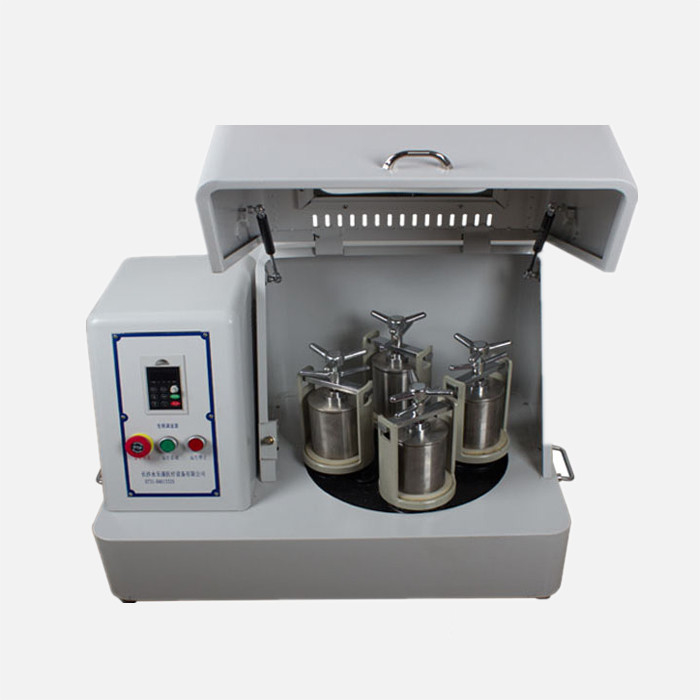

40L Full Directional Small Ball Mill , Nano Powder Planetary Grinding Machine

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

40L Full Directional Small Ball Mill , Nano Powder Planetary Grinding Machine

40L Full Directional Small Ball Mill , Nano Powder Planetary Grinding Machine
40L Full Directional Small Ball Mill , Nano Powder Planetary Grinding Machine

Large Image :  40L Full Directional Small Ball Mill , Nano Powder Planetary Grinding Machine

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKM-20L
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

40L Full Directional Small Ball Mill , Nano Powder Planetary Grinding Machine

Description
Product Name: 40L Full-directional Laboratory Ball Mill For Nano Powder Grinding With Multiple Dimensional Rotations Power Supply: 220V/380V
Input Size: 3-10mm Output Size: Min. 0.1um
Capacity: 1/3 Of Jar Noise:: Less Than 60db
Certification:: ISO, CE
High Light:

40L small ball mill

,

Full Directional small ball mill

,

Nano Powder planetary grinding machine

40L Full-directional Laboratory Ball Mill For Nano Powder Grinding With Multiple Dimensional Rotations



Product Introduction

The planetary ball mill is a necessary device used for high-tech materials milling, fine grinding, powder mixing, nano powder making, new product development and small batch production. the planetary ball mill owns advantages and features such as small volume, high efficiency, low noise and complete functions. the planetary ball mill is designed with four working positions and it makes you get four samples (maximum) at one time. you can also use this machine to get powder samples under the vacuum environment if it is equipped with vacuum ball mill jars for grinding.



Working Principle

The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill.



Applications



Vertical planetary ball mill is widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on.



Product Display

40L Full Directional Small Ball Mill , Nano Powder Planetary Grinding Machine 0



Technical Features

Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Max Load Capacity Less than 2/3 of total volume of grinding jars
Feed Size of Materials Soft and crispy material≤10mm,Other materials≤3mm
Output Granule Minimum 0.1µm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 Hours
Materials of Jar stainless steel.agate,nylon,corundum, zirconia,etc



Product Parameters

Model

Jar Volume

Max.Powder Capacity

Rotation Speed (RPM)

Revolution Speed (RPM)

Max Noise

Power (KW)

Net Weight

Dimension

(mm)

YKM-20 5L 6.6L

25-215

50-430

60db 4 350

1350*780*750

YKM-40 10L 13.3L

20-195

40-390

605db 5.5 420

1350*880*850

YKM-60L 15L 20L

20-180

40-360

68db

7.5 560

1550*950*1000

YKM-100L 25L 33L

20-120

40-240

40-240

11 850

1800*1100*1350



Accessories of Grinding Pots & Balls

40L Full Directional Small Ball Mill , Nano Powder Planetary Grinding Machine 1
