Product Details:
|
Product Name: | Mini Size 0.4L Vertical And Movable Nano Powder Grinding Laboratory Ball Milling Machine | Power Supply: | 220V/110V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 0.1um |
Capacity: | 1/3 Of Jar | Noise:: | Less Than 60db |
Certification:: | ISO, CE | ||
Highlight: | Mini 0.4L Laboratory Ball Mill Machine,Movable Laboratory Ball Mill Machine,Nano powder grinding equipment |
Mini size 0.4L Vertical and Movable Nano Powder Grinding Laboratory Ball Milling Machine
Product Introduction
YLK Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder.
Working Principle
The Mini planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together
Applications
Mini planetary ball mill is widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic and etc.

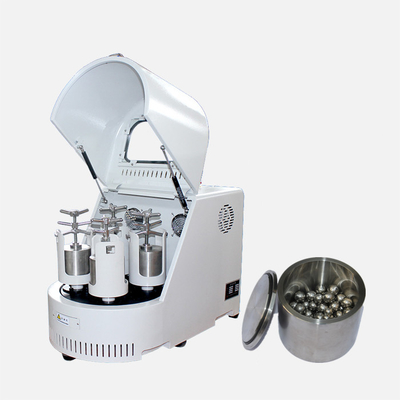

Product Display
Technical Features
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Max Load Capacity | Less than 2/3 of total volume of grinding jars |
Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
Output Granule | Minimum 0.1µm |
Rotational Speed Ratio | 1/2 |
Max.Continuous Operating Time | 72 Hours |
Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
YKM-0.4L | 100ml | 130ml | 45-430 | 90-870 | 58db | 0.25 | 29kg | 530*300*340 |
YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
Features of Tencan 0.4L 110 - 220v Mini Laboratory Ball Mill
1) With small size, light weight, low noise.
2) can be operated continuously, one-way running, automatic positive and reverse continuous and regular operation.
3) series of ball mill can be dry grinding, wet grinding, vacuum grinding, protection of the atmosphere.
4) series planetary ball mill main belt tightness adjustable, long-term use is not easy to slip, greatly extended the service life.
5) Repeat-ability, for the same material, the same process, the result is repeated several times the ball mill. Because of the time, the belt is loose, which can lead to the rotation speed
Accessories of Grinding Pots & Balls
