Lab 0.4L Planetary Table Top Ball Mill , 220V / 110V Micro Ball Mill Machine

Certification
China Changsha Yonglekang Equipment Co., Ltd. certification
China Changsha Yonglekang Equipment Co., Ltd. certification
I'm Online Chat Now

Lab 0.4L Planetary Table Top Ball Mill , 220V / 110V Micro Ball Mill Machine

Lab 0.4L Planetary Table Top Ball Mill , 220V / 110V Micro Ball Mill Machine
Lab 0.4L Planetary Table Top Ball Mill , 220V / 110V Micro Ball Mill Machine

Large Image :  Lab 0.4L Planetary Table Top Ball Mill , 220V / 110V Micro Ball Mill Machine

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKM-0.4L
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

Lab 0.4L Planetary Table Top Ball Mill , 220V / 110V Micro Ball Mill Machine

Description
Product Name: 220V Or 110V High Efficiency 0.4L Vertical Lab Planetary Ball Mill Desktop Type Power Supply: 220V/110V
Input Size: 3-10mm Output Size: Min. 0.1um
Capacity: 1/3 Of Jar Noise:: Less Than 60db
Certification:: ISO, CE Item: Lab Ball Milling Machine
High Light:

Planetary table top ball mill

,

0.4L table top ball mill

,

220V micro ball mill Machine

220V or 110V High Efficiency 0.4L Vertical Lab Planetary Ball Mill Desktop Type



Product Introduction

YLK Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.



Working Principle

The Mini planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together



Applications

Mini planetary ball mill is widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.



Product Display

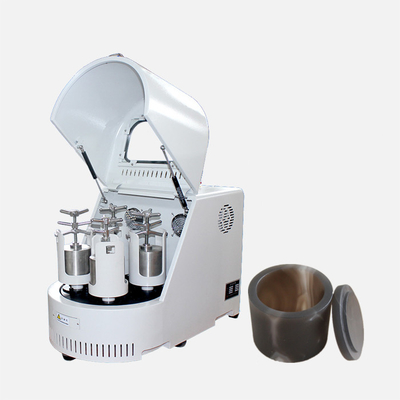

Lab 0.4L Planetary Table Top Ball Mill , 220V / 110V Micro Ball Mill Machine 0



Technical Features

Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Max Load Capacity Less than 2/3 of total volume of grinding jars
Feed Size of Materials Soft and crispy material≤10mm,Other materials≤3mm
Output Granule Minimum 0.1µm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 Hours
Materials of Jar stainless steel.agate,nylon,corundum, zirconia,etc



Product Parameters

Model

Jar Volume

Max.Powder Capacity

Rotation Speed (RPM)

Revolution Speed (RPM)

Max Noise

Power (KW)

Net Weight

Dimension

(mm)

YKM-0.4L 100ml 130ml 45-430 90-870 58db 0.25 29kg 530*300*340
YKM-1L 250ml 330ml 35-340 70-680 60db 0.75 80kg 750*470*590
YKM-2L 500ml 660ml 35-340 70-680 60db 0.75 80kg 750*470*590
YKM-4L 1L 1.3L 35-340 70-680 60db 0.75 80kg 8750*470*590
YKM-8L 2L 2.6L 35-290 70-580 60db 1.5 132 880*560*670
YKM-12L 3L 4L 35-290 70-580 60db 1.5 170 880*560*670
YKM-16 4L 5.3L

30-225

60-520

60db 3 203

950*600*710



Features of  0.4L 110 - 220v Mini Laboratory Ball Mill

1. Patented oil seal mute technology and gear drive core technology(gear running in the oil tank ),noise reduced by 50%,increase service life more than 2 times
2. PLC frequency conversion control
3. With own design for precision gear drive instead of original belt drive,such as belt easy to slip and unstable speed.
4. Suitable for dry/wet/vacuum/protective atmosphere/low temperature/high temperature mill.
5. Ensures the Homogeneity and repeat-ability of the experiment.
6. It can solute the problems for the deposition and sticking of some materials and four samples could be obtained with different sizes in one experiment.
7. Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss.
8. The device is equipped with a safety switch, which can avoid the equipment running after opening the safety cover, and avoid a safety accident;
9. When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.
10. V clip with automatic gear lock, easy to install and disassemble, easy to loosen, safe and reliable, simple and easy to use, delicate design and beautiful shape.



Accessories of Grinding Pots & Balls

Lab 0.4L Planetary Table Top Ball Mill , 220V / 110V Micro Ball Mill Machine 1
