1L Horizontal Laboratory Ball Mill For Nano Scale Powder Grinding

1L Horizontal Laboratory Ball Mill For Nano Scale Powder Grinding
1L Horizontal Laboratory Ball Mill For Nano Scale Powder Grinding 1L Horizontal Laboratory Ball Mill For Nano Scale Powder Grinding

Large Image :  1L Horizontal Laboratory Ball Mill For Nano Scale Powder Grinding

Product Details:
Place of Origin: Hunan, China
Brand Name: YLK
Certification: CE ISO
Model Number: YQHM-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton + Foam
Delivery Time: 3-7 working days after getting full payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

1L Horizontal Laboratory Ball Mill For Nano Scale Powder Grinding

Description
High Light:

1L Horizontal Laboratory Ball Mill

,

Nano Scale Powder Laboratory Ball Mill

,

1L Laboratory Horizontal Ball Mill

1L Horizontal laboratory ball mill Good Performance For Nano Scale Powder Milling


Overview

​YLK Horizontal planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1~1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.



Working Principle

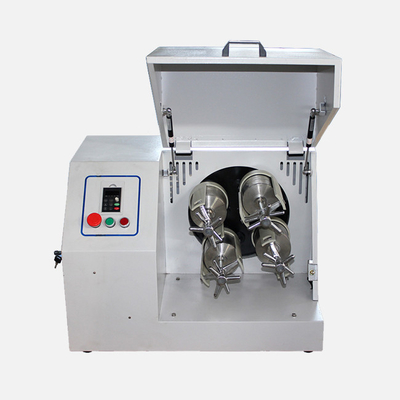

Horizontal Laboratory Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The machine smashes and blends various kinds of different materials in dry or wet grinding methods. Smallest granularity of output powder can be reached to 0.1μm.


Applications

Horizontal laboratory ball mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on.


Features
1. Easy operation.
2. Unique gear with low noise.
3. Horizontal structure of the mill jar avoids materials sticking the jar wall and sinking to the jar bottom.


Advantages
1. Stable revolving speed.
2. High speed, large energy, high efficiency, small Granularity.
3. Four powder samples can be produced at one time.
4. Speed is adjustable.
5. The ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, and timing according to experimental needs so as to improve efficiency of grinding.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident.

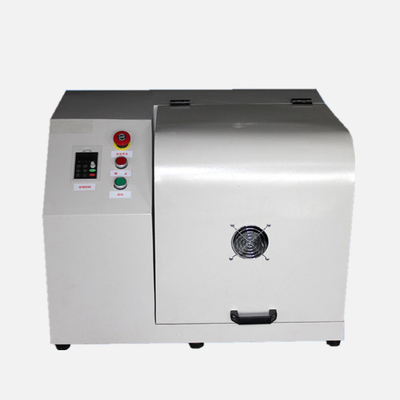

Product Display

1L Horizontal Laboratory Ball Mill For Nano Scale Powder Grinding 0





Technical Features

Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Maximum Loading Capacity 2/3 of the capacity of milling tank
Feeding Size Soil material≤10mm, other materials≤3mm
Output Granularity Smallest granule reaches 0.1 μm
Rotational Speed Ratio 1/2
Max. Continuous Operating Time 72hours
Optional Modes of Speed Control Frequency conveter and automatic timing control
Materials of Jar Stainless steel, agate, nylon, corundum, zirconia, etc.



Technical Parameters


Model No. Power
(kw)
Voltage
(v)
Dimension
(mm)
Revolution Speed
(rpm)
RotationSpeed
(rpm)
Total Timing
(min)
Alternating Run
Time of Forward &
Reversal Rotation
(min)
YQHM-0.4L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YQHM-1L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YQHM-2L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YQHM-4L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999
YQHM-6L 0.75 220V-50Hz 700*510*570 35-335 70-670 1-9999 1-999


Accessories of Mill Jars & Balls
Stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.
1L Horizontal Laboratory Ball Mill For Nano Scale Powder Grinding 1
