Product Details:
|
Keyword: | Vacuum Ball Mill | Item: | Super Fine Powder Grinding Machine |
---|---|---|---|
Materials Size: | 3~10mm Maximum Into 0.1~1µm Minimum Powder | Type: | Mini Planetary Ball Mill |
Highlight: | 4*1L vacuum ball mill,PTC vacuum ball mill,super fine powder grinding machine |

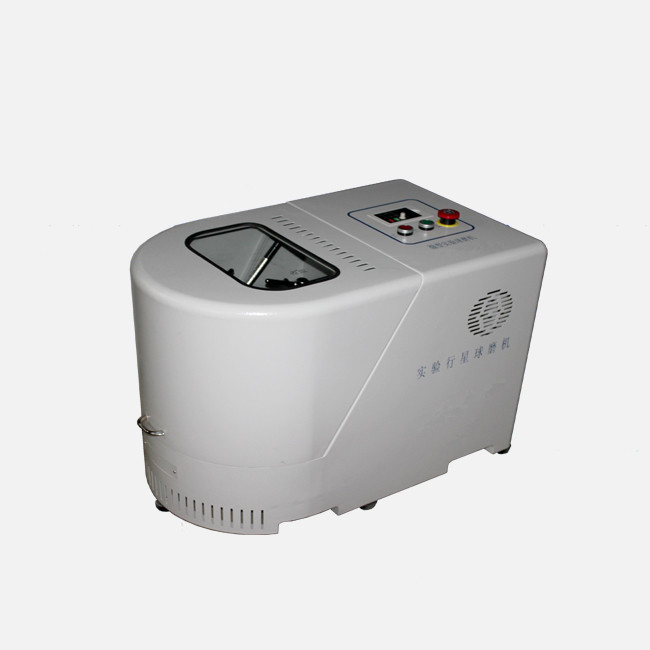

4L Horizontal laboratory ball mill 4*1L Vacuum Mill Jars Good For Super Fine Powder Milling
Overview
YLK Mini planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1~1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time).
Working Principle
The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together.
Applications
Horizontal laboratory ball mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.
Product Display
Features
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle owns high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Technical Features
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Maximum Loading Capacity | 2/3 of the capacity of milling tank |
Feeding Size | Soil material≤10mm, other materials≤3mm |
Output Granularity | Smallest granule reaches 0.1 μm |
Rotational Speed Ratio | 1/2 |
Max. Continuous Operating Time | 72hours |
Optional Modes of Speed Control | Frequency conveter and automatic timing control |
Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
Technical Parameters
Model No. | Power (kw) |
Voltage (v) |
Dimension (mm) |
Revolution Speed (rpm) |
RotationSpeed (rpm) |
Total Timing (min) |
Alternating Run Time of Forward & Reversal Rotation (min) |
YKM-0.4L | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
YKM-1L | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
YKM-2L | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
YKM-4L | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
YKM-6L | 0.75 | 220V-50Hz | 700*510*570 | 35-335 | 70-670 | 1-9999 | 1-999 |
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.
