Product Details:
|
Product Name: | C Type Argon Acrylic Glove Box , 2 Ports Isolation Glove Box | Material: | Acrylic |
---|---|---|---|
Transit Box: | One | Glove Ports: | 2 |
Highlight: | isolation acrylic glove box,Argon acrylic glove box,2Ports isolation glove box |

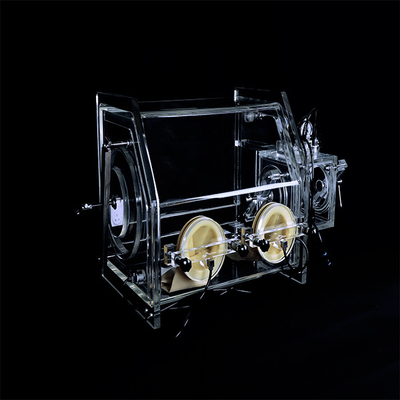

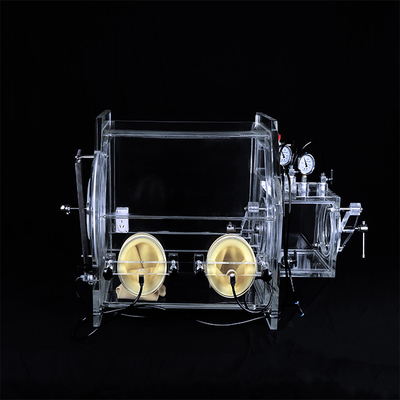

C Type Argon Acrylic Glove Box , 2 Ports Isolation Glove Box
Product Introduction
transparent glove box offers inert gas environmental workspace with vacuum air locker and side door. Two vacuum gauges indicate the pressure inside the main chamber and air-lock chamber respectively.
Three manual valves are installed for immediate use, while two solenoid valves are installed on the main chamber to implement the pressure auto-control. The Glove box is made of transparent acrylic providing a clear view from any angle.
Acrylic construction offers resistance to a wide range of chemicals,
high-impact strength, and scratch-resistance. It is widely used for preparing nano-materials.
Applications
It is widely used for Electronic materials, magnetic materials, battery, biological cultivation, food vacuum packaging,battery materials, etc.
Product Display
Technical Features
Transit box vacuum degree | 0~ -0.1Mpa (2.5 Vacuum gauge) |
Operation box vacuum degree | 0~ -0.1Mpa (2.5 Vacuum gauge) |
Inlet gas proposed | with 99.95% purity above |
Product Parameters
Model (C Type) | Operation Box |
Thickness of Acrylic (mm)
|
Transit Box |
Round Door Diameter (mm)
|
||
Size(mm) |
Vacuum Pumping function |
Size(mm) | Vacuum Pumping function | |||
YKG-012 | 700*450*500 | Yes | 20mm | 240*240*240 | Yes | 300mm |
YKG-011 | 800*550*600 | Yes | 25mm | 240*240*240 | Yes | 300mm |
YKG-010 | 1000*500*500 | Yes | 25mm | 240*240*240 | Yes | 300mm |
YKG-009 | 1000*700*500 | Yes | 30mm | 240*240*240 | Yes | 300mm |
YKG-008 | 900*600*700 | Yes | 30mm | 240*240*240 | Yes | 300mm |
YKG-007 | 1000*600*700 | Yes | 30mm | 240*240*240 | Yes | 300mm |
YKG-006 | 1000*750*700 | Yes | 30mm | 240*240*240 | Yes | 300mm |
YKG-005 | 1200*600*600 | Yes | 30mm | 240*240*240 | Yes | 300mm |
YKG-001 | 1094*640*645 | Yes | 35mm | 240*240*240 | Yes | 350mm |
Product Features
Operation Notice
