Product Details:
|
Product Name: | Vacuum Chamber Glove Box Laboratory Glove Box For Lithium Battery And Chemicals Experiment | Material: | Stainless Steel |
---|---|---|---|
Transit Box: | One | Glove Ports: | 2 |
Highlight: | Vacuum Glove Box chamber,12Hours Vacuum Glove Box,Lithium Battery glove box vacuum chamber |

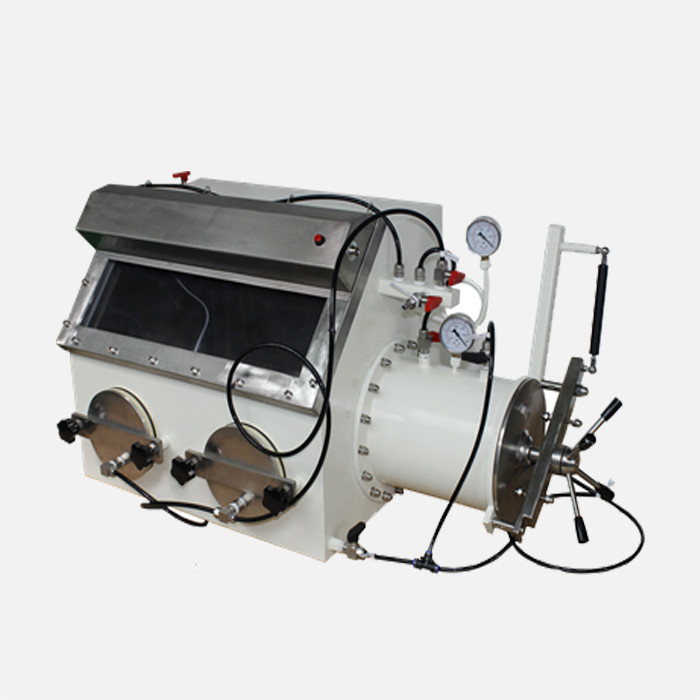

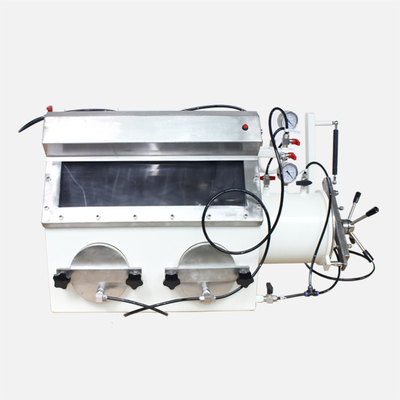

Vacuum Chamber Glove Box Laboratory Glove Box For Lithium Battery And Chemicals Experiment
Product Introduction
YLK vacuum glove box is made of stainless steel box body, antechamber(air lock) and vacuum pump system, user can pass inert gas for protection, the vacuum degree can reach 0~-0.1MPa, simple structure and clear window make the whole operation easier.
Applications
YLK stainless steel vacuum glove boxes are often used in scientific experiment scenes that have strict requirements for water, oxygen, and inert gas atmospheres, It is suitable for chemical, geological, mineral, pharmaceutical, magnetic materials, equipment batteries, biochemical, metallurgy, electronics, biological cultivation, food packaging, battery materials and other production processes that require processing under a protective atmosphere.
Product Display
Product Features
Transit box vacuum degree | 0~ -0.1Mpa (2.5 Vacuum gauge), pressure maintain period for 12Hours above |
Operation box vacuum degree | 0~ -0.1Mpa (2.5 Vacuum gauge), pressure maintain period for 12Hours above |
Inlet gas proposed | Argon / Nitrogen / Helium gas (with 99.95% purity above) |
Product Parameters
Model | Operation Box Size(mm) | Transit Box Size(mm) | Small Transit Box(mm) | Gloves Port Diameter(mm) | Net Weight(Kg) |
YKS-01 | 600*450*500 | φ 200 * 270 | without | 2 * φ 145 | 120 |
YKS-02 | 800*600*700 | φ 280 * 350 | without | 2 * φ 200 | 230 |
Product Advantages
