V- Mixer

V- Mixer
V- Mixer

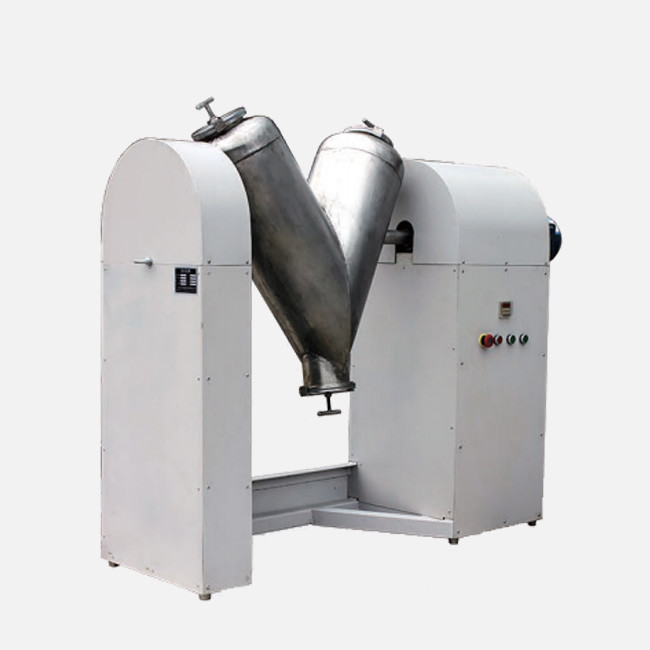

Large Image :  V- Mixer

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKV-50
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

V- Mixer

Description
Product Name: V- Mixer Power Supply: 110V/220V/380V
Capacity: 1/3 Of Tank Noise:: Less Than 60db
Certification:: ISO, CE
High Light:

lab scale ball mill

,

lab ball milling machine

Product Introduction
The V- mixer is used to mix the powder uniformly. It is suitable for mixing more than two kinds of dry powder and granular materials in the pharmaceutical, food, chemical, metallurgical, electronic and other industries. The mixing barrel of the V-shaped mixer has a unique structure, and the material in the V-shaped cylinder is turned back and forth through mechanical transmission to achieve the purpose of uniform mixing. The mixing barrel of the V- mixer is generally made of stainless steel with polished inner and outer walls. The structural design ensures that there is no dead corner of material accumulation. It has the characteristics of no dead corner of the barrel, no material accumulation, fast speed and short mixing time, and it is convenient to clean.

Working Principle
The V-Mixer is composed of two cylinders formed and welded together. The shape of the container is asymmetric with respect to the axis. Due to the rotational movement, the powder particles are continuously alternated, divided, and merged in the inclined cylinder; the materials are randomly transferred from one area to another area, and at the same time, the powder particles are slipped and superimposed multiple times in space. It is continuously distributed on the newly generated surface, so that shearing, diffusion and mixing are repeated, and there is no dead corner of mixing.

Applications
V-type mixer machine is suitable for pharmacy,food,chemical, metallurgy,electronics and other industries, used for mixing the dry granule materials.

Product Parameters



Model V-tank Volume (L) Optimal loading volume (L) Power (kw) Rotation Speed (r/min)
YKV-5 5L 2L 0.37KW 50
YKV-10 10L 4L 0.37KW 50
YKV-20 20L 8L 0.75KW 33
YKV-50 50L 20L 1.5KW 33
YKV-100 100L 40L 1.5KW

23

YKV-200 200L 80L 3KW 19
YKV-300 300L 120L 4KW 14
YKV-500 500L 200L 7.5KW 12


Product Features

  1. High mixing efficiency for materials with similar particle size and density.
  2. It is not easy to cause breakage when mixing particles.
  3. There is no mechanical extrusion and strong abrasion, which can keep the material particles intact.
  4. The inside and outside of the cylinder are polished, and they are all designed to have a smooth transition without dead ends, which can avoid material cross contamination.
  5. The material of the cylinder can be carbon steel, stainless steel, etc.
  6. With timing function.
