Laboratory Stirred Ball Mill

Laboratory Stirred Ball Mill
Laboratory Stirred Ball Mill Laboratory Stirred Ball Mill

Large Image :  Laboratory Stirred Ball Mill

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YLS-10L
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

Laboratory Stirred Ball Mill

Product Name: Laboratory Stirred Ball Mill Power Supply: 110V/220V/380V
Input Size: 3-10mm Output Size: Min. 0.1um
Capacity: 1/3 Of Jar Noise:: Less Than 60db
Certification:: ISO, CE
High Light:

lab scale ball mill


lab ball milling machine

Product Introduction
Stirred ball mill mainly consist of jar with inner grinding media, stirring device and other auxiliary devices such as recycling device, cooling device, timing device, speed adjusting controller, and etc. Its advantages of high efficiency and fine granularity meet technological requirements of various processes. Stirred ball mill is a kind of ideal equipment that are used to crush new materials and research painting for universities, research centers and enterprises because of its features of small batch, low power and low price.
Working Principle
When machine rotates with high speed under driving of main axis and grind media move irregularly at the same time, the grind material can be crushed, ground and sheared into fine granularity powder. The size, shape and matching ratio of the grind media can affect the grinding result. Generally speaking, the bigger the mill media is, the finer the grinding powder is. A proper match ratio of grind medias and proper adjustment of rotation speed can get better grinding effect.
Lab Stir Machine is applied to industries of pharmacy, food, chemical, metallurgy, electronic.

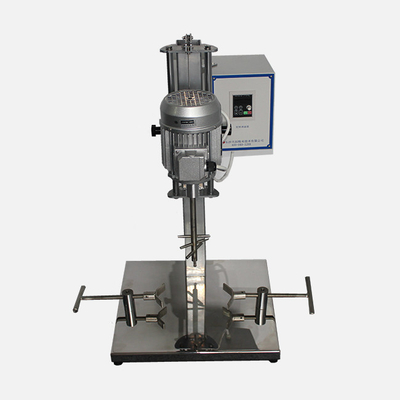

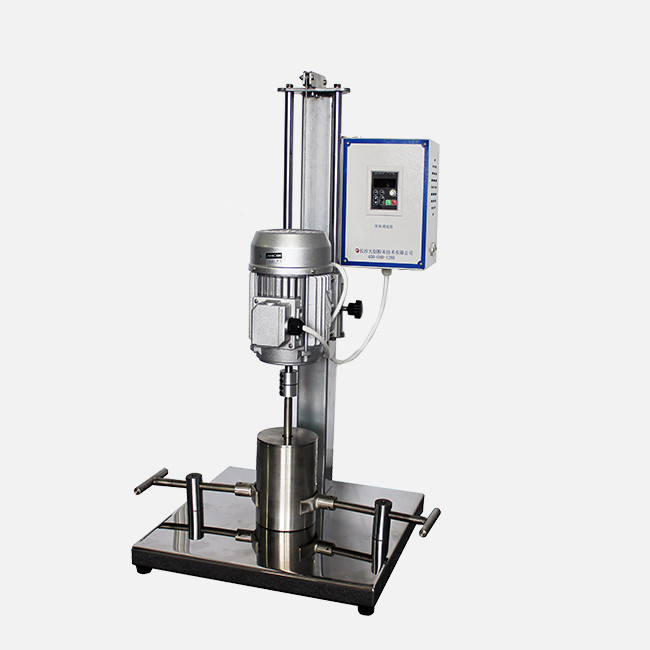

Product Display
Laboratory Stirred Ball Mill 0
Product Parameters

Model No.Rotate Speed (rpm) Volume (L)Load Capacity (L)Power Supply
Available JarsFeed Size (mm)Output Granularity (µm)Speed Control
YLS-1L50-14001L0.35L0.37KWStainless steel
Alumina ceramic
≤5≤1Frequency speed adjuster
YLS-5L60-5605L1.75L0.75KW≤5≤1Frequency speed adjuster
or Fixed speed setting
for buyer's option
YLS-30L60-31030L10L3KWCarbon steel
Stainless steel
Nylon liner
PU liner
Alumina ceramic liner
PTFE liner
YLS-200 60-110200L70L11KW≤15≤1
YLS-500L 60-90500L170L18.5KW≤15≤1

Product Features

  1. High utilization rate of energy, saving energy;
  2. Granularity is adjustable by adjusting grinding time;
  3. Less vibration, low noise;
  4. Simple structure, easy operation;
  5. Meet requirements of various processes, realize continuous or intermittent production;
  6. Jar with jacket, easy to control the grinding temperature;
  7. Customized service is available. Special functions such as timing, speed adjusting, recycling, temperature controlling can be selected and ordered;
  8. A variety of grinding jars in different materials is available for customer’s option such as stainless steel, corundum ceramic, polyurethane, zirconia and so on;

Accessories of Grinding Pots & Balls
Laboratory Stirred Ball Mill 1
