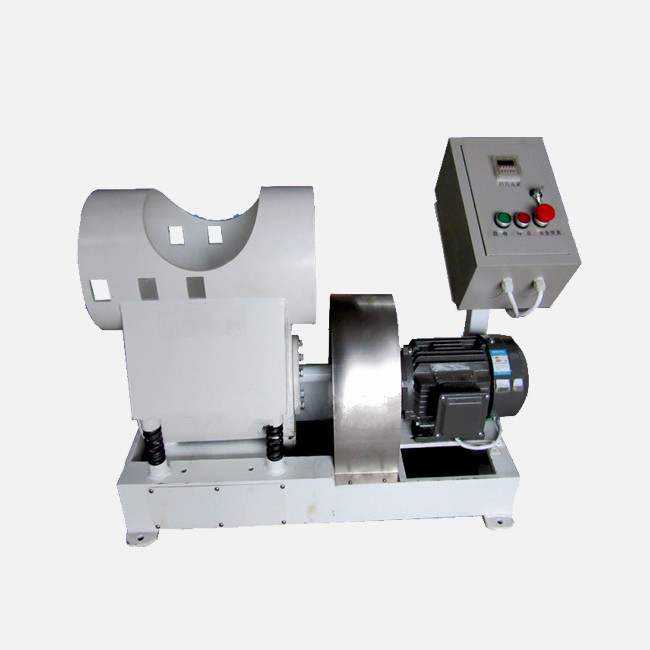

Vibratory Ball Mill

Vibratory Ball Mill
Vibratory Ball Mill Vibratory Ball Mill

Large Image :  Vibratory Ball Mill

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKV-5L
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

Vibratory Ball Mill

Product Name: Vibratory Ball Mill Power Supply: 110V/220V/380V
Input Size: ≤5mm Output Size: Min. 1um
Capacity: 1/2 Of Jar Noise:: Less Than 60db
Certification:: ISO, CE
High Light:

lab scale ball mill


lab ball milling machine

Product Introduction

The vibratory ball mill is a new type of high efficiency powder grinding equipment, including single jar, double jars and three jars models. The operation is simple and convenient, the work is reliable, easy to clean, and adapt to different working conditions. It can be used for wet and dry grinding without pollution.The stainless steel, ceramic, zirconia, glass block, nylon, PTFE, food standard rubber and polyurethane lining are available for customers to choose.


Working Principle

The vibratory ball mill consists of a shelf, a chassis, a vibration generator, a spring, a cylinder, a motor, and the like. When the machine is started, the motor-driven vibration generator generates continuous vibration, which makes the cylinder amplitude small and continuous high-frequency movement. Due to the rotation and relative motion of the grinding media, the material in the cylinder is often crushed, peeled and ground into a uniform powder.



The machine is widely used in electronics, ceramics, chemicals, powder metal, tungsten, calcium carbide, rubber compounds, magnetic materials and high-frequency ceramic materials as well as radio industry pharmaceuticals.


Product Display

Vibratory Ball Mill 0


Technical Features

  1. Larger capacity.
  2. Simple structure. the machine produces different powder in different granularity.
  3. Vibration mill with jacket makes grinding temperature adjustable.
  4. Vibration with griddle and collection device can work continuously.
  5. Easy and convenient to be operated, reliable at performance, easy to clean.
  6. No environmental pollution, both dry and wet milling are available.
  7. Light weight, small size, high efficiency

Product Parameters



Jar Volume (L)

Load Capacity(L)

Motor Power (KW)

Feed Size (mm)

Output Size (μm)

Power Supply

YKV-1L 1 0.5 1.1KW ≤5 ≤1 380V Lab
YKV-2L 2 1 1.1KW ≤5 ≤1 380V Lab
YKV-3L 3 1.5 1.1KW ≤5 ≤1 380V Lab
YKV-5L 5 2.5 1.1KW ≤5 ≤1 380V Lab
YKV-10L 10 5 1.5KW ≤10 ≤1 380V Lab
YKV-15L 15 7.5 1.5KW ≤10 ≤1 380V Light
YKV-20L 20 10 1.5KW ≤10 ≤1 380V Light
YKV-50L 50 25 3KW ≤≤10 ≤1 380V Large
YKV-100L 100 50 4KW ≤≤10 ≤1 380V Large
Materials of Jars(1-20L): Stainless steel, agate, nylon, corundum, zirconia, PTFE.
Materials of Jar(30-200L): Carbon steel, stainless steel. Optional liners have nylon, PU, PTFE, corundum.


Accessories of Grinding Pots & Balls

Vibratory Ball Mill 1
